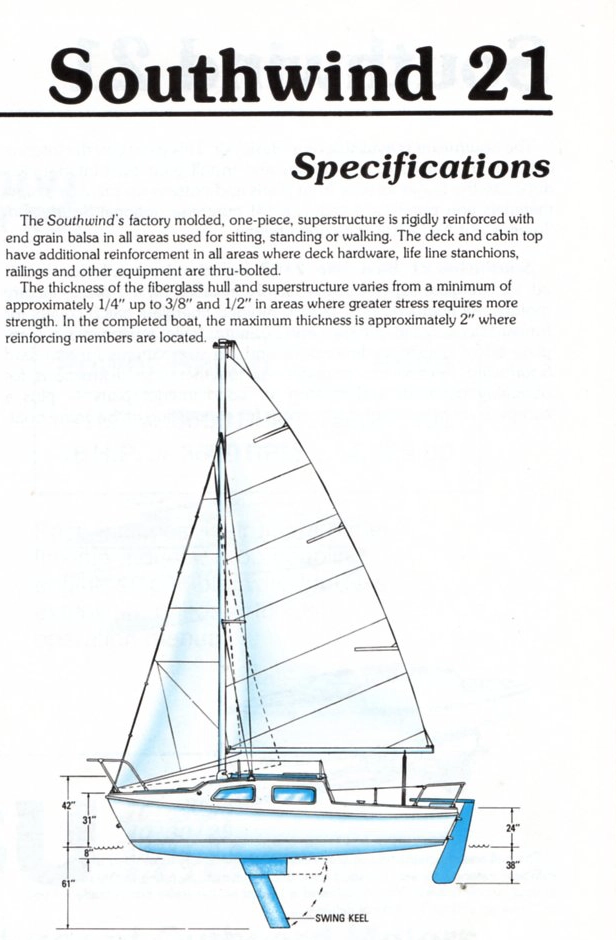

Westwind 20 / Southwind 20 / 21
Description
Luger used the term "Westwind" and "Southwind" to describe a number of different boats over the years (see the web article referenced). Here the Westwind is a centerboard model while the Southwind has a fin keel. These boats were built from kits so measurements are likely to vary somewhat.
Construction Details
| Designer | Luger Boats |
|---|---|
| Length | 21.000 ft |
The standard boat dimensions
| i | 19.60 ft |
|---|---|
| j | 5.16 ft |
| p | 23.50 ft |
| e | 12.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 19.60 ft | 5.16 ft | 23.50 ft | 12.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | * 19.25 ft - (5867 mm) |
| Foot | * 8.17 ft - (2490 mm) |
| Leech | * 18.35 ft - (5593 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 7.74 ft - (2359 mm) |
| Deck Angle | * 3.9 ° |
| Area | * 74.51 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 40.45 ft - (12329 mm) |
| MidGirth | * 20.7 ft - (6309 mm) |
| Foot | * 20.7 ft - (6309 mm) |
| Perc LP | * 180 |
| Area | * 712 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 23.5 ft - (7163 mm) |
| Foot | * 12.5 ft - (3810 mm) |
| Leech-AftHdBd | * 25.94 ft - (7907 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 26.23 ft - (7995 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 152.1 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 17.5 ft - (5334 mm) |
| Foot | 6.75 ft - (2057 mm) |
| Leech | 15.5 ft - (4724 mm) |
| Percentage LP | * 115.31 % |
| Length Perpendicular | * 5.95 ft - (1814 mm) |
| Deck Angle | * 13.43 ° |
| Area | * 52.06 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 20 ft - (6096 mm) |
| Foot | 9 ft - (2743 mm) |
| Leech | 18.5 ft - (5639 mm) |
| Perc LP | * 165 |
| Area | * 135 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
