Welsford Walkabout
Description

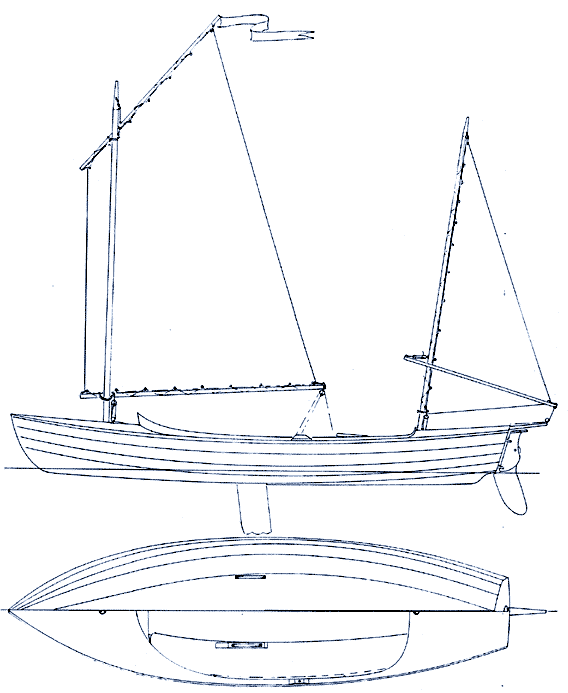

The Welsford Walkabout is a sailboat designed by Welsford.
Sail calculations are not available for this boat as no dimensions are available.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | LUGSAIL |
|---|---|
| Luff | 7.546 ft - (2300 mm) |
| Foot | 7.71 ft - (2350 mm) |
| Leech | 12.795 ft - (3900 mm) |
| Head | * 86.97 ft - (26508 mm) |
| Diag (clew/throat) | 10.499 ft - (3200 mm) |
| Tack Angle | 6.808 ° |
| Area | * 64.74 ft² |
| Sail Type | LEG-O-MUTTON |
|---|---|
| Luff | 9.186 ft - (2800 mm) |
| Foot | 4.134 ft - (1260 mm) |
| Leech | * 9.1 ft - (2774 mm) |
| Tack Angle | * 77 ° |
| Diag (clew/head) | 9.186 ft - (2800 mm) |
| Head (Inches) | 1.75 |
| Area | * 19.04 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
