Tartan 3700
Description

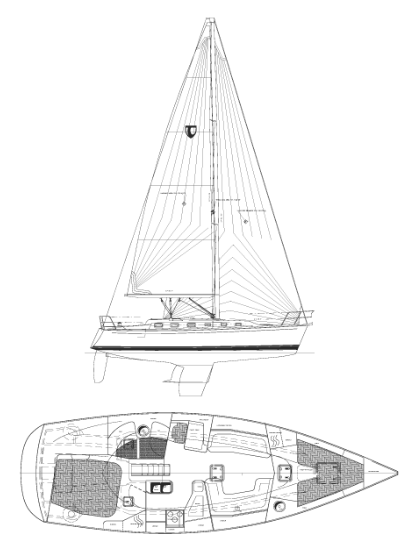

The Tartan 3700, designed by naval architect Tim Jackett, was produced by Tartan Marine from 2000 to 2016, with 188 hulls built. This masthead sloop is a benchmark performance cruiser renowned for its speed, stability, and shorthanded ease, featuring a fin keel with spade rudder (shoal or deep options) and a beamy hull for balanced handling—sleeping 6–7 in a luxurious teak interior with two cabins and heads, making it a versatile choice for coastal racing or offshore family voyages.
Construction Details
| Designer | Tim Jackett |
|---|---|
| Builder | Tartan Marine (USA) |
| Length | 37.000 ft |
| LOA | 37.000 ft |
| LWL | 32.500 ft |
| Beam | 12.670 ft |
| Displacement | 15950 lb |
| Ballast | 6000 lb |
| Max Draft | 7.250 ft |
| Year Built | 2000 |
The standard boat dimensions
| i | 51.75 ft |
|---|---|
| j | 15 ft |
| p | 45.25 ft |
| e | 15 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 51.75 ft | 15 ft | 45.25 ft | 15 ft | - | - | - | - |
Sails
Tartan 3700 - MAINSAIL
| Luff | * 45.25 ft - (13792 mm) |
|---|---|
| Foot | * 15 ft - (4572 mm) |
| Leech | * 46.9 ft - (14295 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 47.17 ft - (14377 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 349.07 ft² |
| Edit in Calculator |
Tartan 3700 - JIBSAIL
| Luff | 49 ft - (14935 mm) |
|---|---|
| Foot | 16.5 ft - (5029 mm) |
| Leech | 45 ft - (13716 mm) |
| Percentage LP | * 100.8 % |
| Length Perpendicular | * 15.12 ft - (4609 mm) |
| Deck Angle | * 7.47 ° |
| Area | * 370.34 ft² |
| Edit in Calculator |
Tartan 3700 - GENOA
| Luff | 50.5 ft - (15392 mm) |
|---|---|
| Foot | 20.75 ft - (6325 mm) |
| Leech | 47.75 ft - (14554 mm) |
| Percentage LP | * 130.4 % |
| Length Perpendicular | * 19.56 ft - (5962 mm) |
| Deck Angle | * 3.37 ° |
| Area | * 493.78 ft² |
| Edit in Calculator |
Tartan 3700 - GENOA
| Luff | * 51.19 ft - (15603 mm) |
|---|---|
| Foot | * 23.97 ft - (7306 mm) |
| Leech | * 48.46 ft - (14771 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 22.5 ft - (6858 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 575.85 ft² |
| Edit in Calculator |
Tartan 3700 - ASYMMETRICAL
| Luff | * 51.19 ft - (15603 mm) |
|---|---|
| Foot | * 24.75 ft - (7544 mm) |
| Leech | * 47.09 ft - (14353 mm) |
| Perc LP | * 165 % |
| Area | * 950 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
