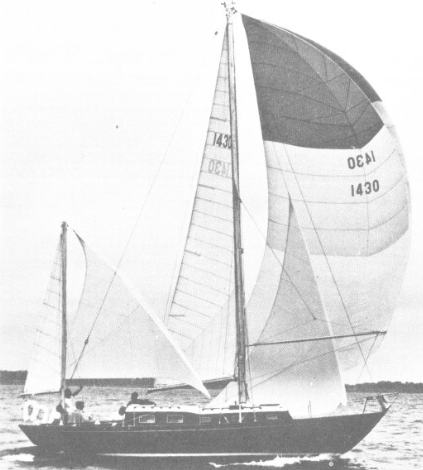

Tartan 37 Blackwatch Ketch
Description
The TARTAN 37 BLACKWATCH KETCH is a sailboat. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 44.29 ft |
|---|---|
| j | 13.75 ft |
| p | 38.91 ft |
| e | 15 ft |
| p2 | 18 ft |
| e2 | 6.90 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 44.29 ft | 13.75 ft | 38.91 ft | 15 ft | 18 ft | 6.90 ft |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 38.91 ft - (11860 mm) |
| Foot | * 15 ft - (4572 mm) |
| Leech | * 41.03 ft - (12506 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 41.21 ft - (12561 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | 291.49 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 37.1 ft - (11308 mm) |
| Foot | * 18.12 ft - (5523 mm) |
| Leech | * 32.37 ft - (9866 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 15.81 ft - (4819 mm) |
| Deck Angle | * 12 ° |
| Area | 293.27 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 44.06 ft - (13429 mm) |
| Foot | * 22.13 ft - (6745 mm) |
| Leech | * 41.52 ft - (12655 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 20.63 ft - (6288 mm) |
| Deck Angle | * 4 ° |
| Area | 454.34 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | * 18 ft - (5486 mm) |
| Foot | * 6.9 ft - (2103 mm) |
| Leech-AftHdBd | * 18.95 ft - (5776 mm) |
| Tack Ang | * 87.99 ° |
| Diag (clew/head) | * 19.05 ft - (5806 mm) |
| Head (inches) | * 3.5 in - (89 mm) |
| Area (no Roach) | 62.02 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
