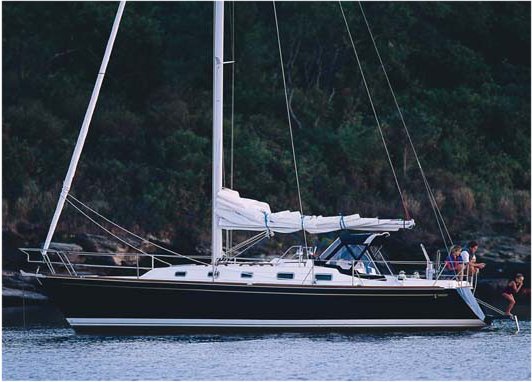

TARTAN 3500
Description
The TARTAN 3500 is a cruising yacht designed by Tim Jackett. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | Tim Jackett |
|---|---|
| Length | 35.000 ft |
| LOA | 35.210 ft |
| LWL | 30.000 ft |
| Beam | 11.750 ft |
| Displacement | 11400 lb |
| Max Draft | 6.500 ft |
The standard boat dimensions
| i | 46.75 ft |
|---|---|
| j | 13.75 ft |
| p | 41.25 ft |
| e | 14.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 46.75 ft | 13.75 ft | 41.25 ft | 14.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | * 46.29 ft - (14109 mm) |
| Foot | * 22 ft - (6706 mm) |
| Leech | * 43.79 ft - (13347 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 20.63 ft - (6288 mm) |
| Deck Angle | * 4 ° |
| Area | 477.33 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 46.29 |
| MidGirth | * 24.75 ft - (7544 mm) |
| Foot | * 24.75 ft - (7544 mm) |
| Perc LP | * 180 |
| Area | 973.83 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 41.25 ft - (12573 mm) |
| Foot | * 14.25 ft - (4343 mm) |
| Leech-AftHdBd | * 43.01 ft - (13109 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 43.17 ft - (13158 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | 293.59 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 38.98 ft - (11881 mm) |
| Foot | * 17.97 ft - (5477 mm) |
| Leech | * 34.3 ft - (10455 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 15.81 ft - (4819 mm) |
| Deck Angle | * 12 ° |
| Area | 308.14 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
