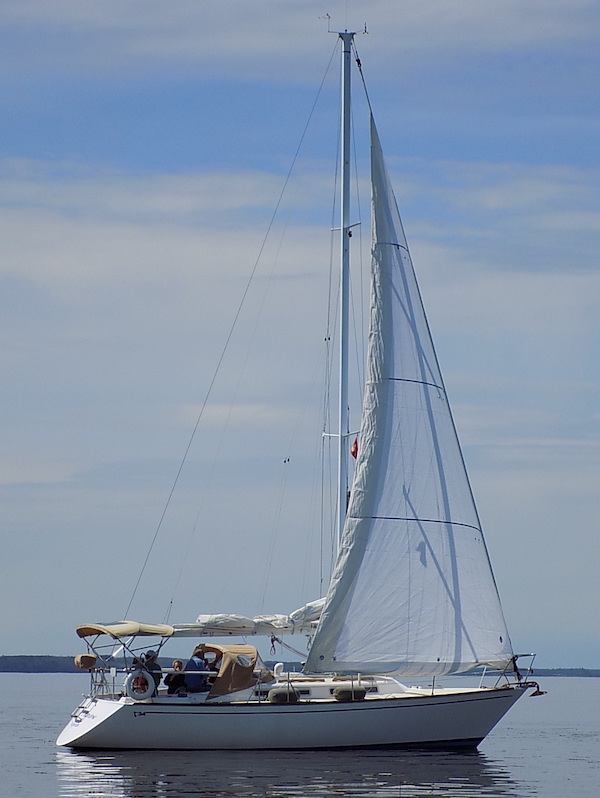

TARTAN 34-2
Description
1985 Tratan MK-2
Construction Details
| Designer | Sparkman & Stephens |
|---|---|
| Length | 34.000 ft |
| LOA | 34.420 ft |
| LWL | 28.830 ft |
| Beam | 10.960 ft |
| Displacement | 11000 lb |
| Max Draft | 6.250 ft |
The standard boat dimensions
| i | 44.80 ft |
|---|---|
| j | 13.60 ft |
| p | 39.20 ft |
| e | 11.90 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 44.80 ft | 13.60 ft | 39.20 ft | 11.90 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAIN (LG ROACH) |
|---|---|
| Luff | * 39.2 ft - (11948 mm) |
| Foot | * 11.9 ft - (3627 mm) |
| Leech | * 40.33 ft - (12293 mm) |
| Tack Angle | * 88 ° |
| Diag (clew/head) | * 40.57 ft - (12366 mm) |
| Head (inches) | * 5.25 in |
| Area | * 240.5 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
