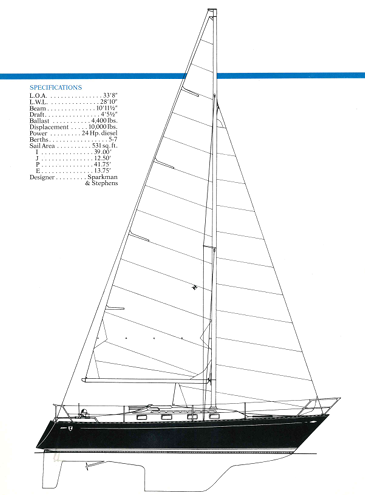

Tartan 33 R
Description
The Tartan 33 R, designed by the legendary firm Sparkman & Stephens, was produced by Tartan Marine from 1979 to 1984 in a limited run of just 14 hulls. This masthead sloop is the racing-oriented variant of the standard Tartan 33, featuring a deep fin keel with spade rudder for superior upwind performance and agility—sleeping 4–5 in a functional teak interior, and appreciated for its speed, stability, and rarity as a compact offshore racer-cruiser.
Construction Details
| Designer | Sparkman and Stephens |
|---|---|
| Builder | Tartan Marine (USA) |
| Length | 33.000 ft |
| LOA | 33.670 ft |
| LWL | 28.830 ft |
| Beam | 10.960 ft |
| Displacement | 10000 lb |
| Ballast | 4400 lb |
| Max Draft | 6.300 ft |
| Year Built | 1979 |
The standard boat dimensions
| i | 45.75 ft |
|---|---|
| j | 13.56 ft |
| p | 39.18 ft |
| e | 11.87 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 45.75 ft | 13.56 ft | 39.18 ft | 11.87 ft | - | - | - | - |
Documents
Sails
Tartan 33 R - MAINSAIL
| Luff | * 39.18 ft - (11942 mm) |
|---|---|
| Foot | * 11.87 ft - (3618 mm) |
| Leech | * 40.43 ft - (12323 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 40.54 ft - (12357 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 239.66 ft² |
| Edit in Calculator |
Tartan 33 R - JIBSAIL
| Luff | * 38.18 ft - (11637 mm) |
|---|---|
| Foot | * 17.75 ft - (5410 mm) |
| Leech | * 33.54 ft - (10223 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 15.59 ft - (4752 mm) |
| Deck Angle | * 12 ° |
| Area | * 297.63 ft² |
| Edit in Calculator |
Tartan 33 R - GENOA
| Luff | * 45.33 ft - (13817 mm) |
|---|---|
| Foot | * 21.72 ft - (6620 mm) |
| Leech | * 42.85 ft - (13061 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 20.34 ft - (6200 mm) |
| Deck Angle | * 4 ° |
| Area | * 461.03 ft² |
| Edit in Calculator |
Tartan 33 R - ASYMMETRICAL
| Luff | * 45.33 ft - (13817 mm) |
|---|---|
| Foot | * 22.37 ft - (6818 mm) |
| Leech | * 41.7 ft - (12710 mm) |
| Perc LP | * 165 % |
| Area | * 760.52 ft² |
| Edit in Calculator |
Tartan 33 R - SPINNAKER
| Stays | * 45.33 ft - (13817 mm) |
|---|---|
| MidGirth | * 24.41 ft - (7440 mm) |
| Foot | * 24.41 ft - (7440 mm) |
| Perc LP | * 180 % |
| Area | * 941 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
