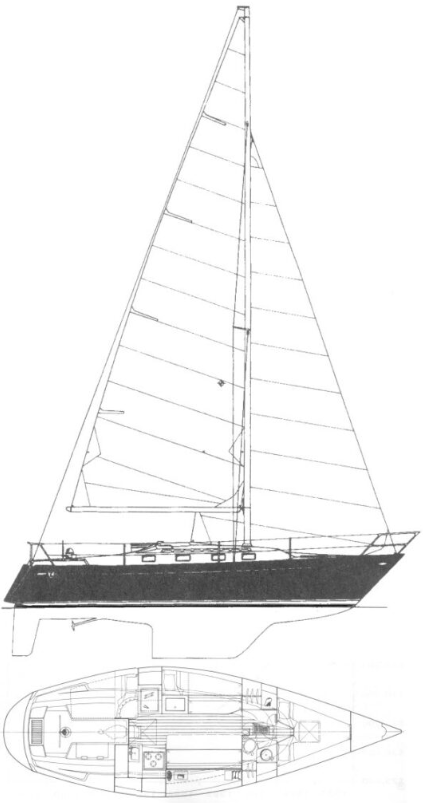

TARTAN 33
Description
The TARTAN 33 is a mid-sized cruiser designed by Sparkman & Stephens. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Sparkman & Stephens |
|---|---|
| Length | 33.000 ft |
| LOA | 33.670 ft |
| LWL | 28.830 ft |
| Beam | 10.960 ft |
| Displacement | 10000 lb |
| Max Draft | 4.560 ft |
The standard boat dimensions
| i | 39 ft |
|---|---|
| j | 12.50 ft |
| p | 41.75 ft |
| e | 13.75 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 39 ft | 12.50 ft | 41.75 ft | 13.75 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | * 38.91 ft - (11860 mm) |
| Foot | * 20.19 ft - (6154 mm) |
| Leech | * 36.59 ft - (11153 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18.75 ft - (5715 mm) |
| Deck Angle | * 4 ° |
| Area | * 364.78 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 38.91 ft - (11860 mm) |
| Foot | * 20.19 ft - (6154 mm) |
| Leech | * 36.59 ft - (11153 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18.75 ft - (5715 mm) |
| Deck Angle | * 4 ° |
| Area | * 364.78 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 41.75 ft - (12725 mm) |
| Foot | * 13.75 ft - (4191 mm) |
| Leech-AftHdBd | * 43.23 ft - (13177 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 43.5 ft - (13259 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 295.98 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 39.75 ft - (12116 mm) |
| Foot | 21.5 ft - (6553 mm) |
| Leech | 36.75 ft - (11201 mm) |
| Perc LP | * 165 |
| Area | * 641 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 39 ft - (11887 mm) |
| Foot | 18.083 ft - (5512 mm) |
| Leech | 36.67 ft - (11177 mm) |
| Percentage LP | * 135.12 % |
| Length Perpendicular | * 16.89 ft - (5148 mm) |
| Deck Angle | * 3.13 ° |
| Area | * 329.4 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 37.75 ft - (11506 mm) |
| Foot | 20.1 ft - (6126 mm) |
| Leech | 35.75 ft - (10897 mm) |
| Percentage LP | * 149.84 % |
| Length Perpendicular | * 18.73 ft - (5709 mm) |
| Deck Angle | * 3.52 ° |
| Area | * 353.5 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 32.76 ft - (9985 mm) |
| Foot | * 16.57 ft - (5051 mm) |
| Leech | * 28.43 ft - (8665 mm) |
| Percentage LP | * 115.04 % |
| Length Perpendicular | * 14.38 ft - (4383 mm) |
| Deck Angle | * 12.03 ° |
| Area | * 235.53 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 38.91 |
| MidGirth | * 22.5 ft - (6858 mm) |
| Foot | * 22.5 ft - (6858 mm) |
| Perc LP | * 180 |
| Area | * 744 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
