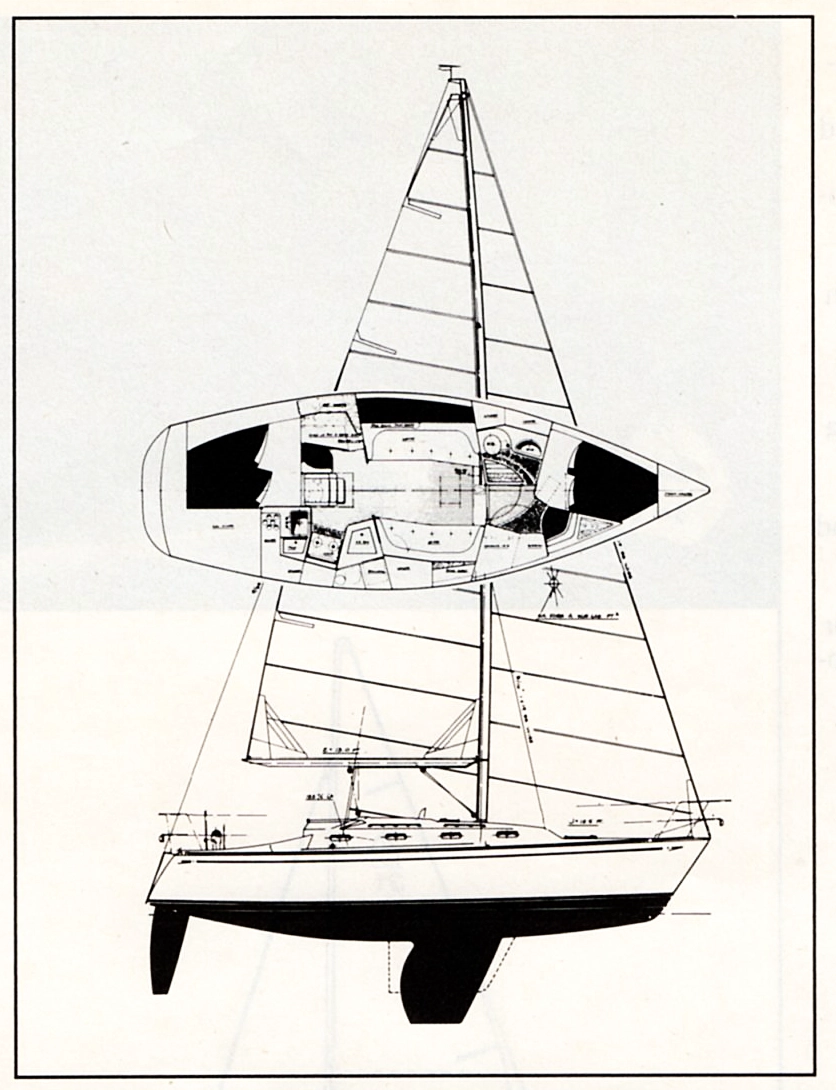

Tartan 31 New
Description
The TARTAN 31 NEW is a sailboat. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 42.50 ft |
|---|---|
| j | 12.50 ft |
| p | 37 ft |
| e | 13 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 42.50 ft | 12.50 ft | 37 ft | 13 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 37 ft - (11278 mm) |
| Foot | * 13 ft - (3962 mm) |
| Leech | * 38.51 ft - (11738 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 38.79 ft - (11823 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 248.37 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 35.44 ft - (10802 mm) |
| Foot | * 16.34 ft - (4980 mm) |
| Leech | * 31.17 ft - (9501 mm) |
| Percentage LP | * 114.96 % |
| Length Perpendicular | * 14.37 ft - (4380 mm) |
| Deck Angle | * 12.04 ° |
| Area | * 254.62 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 41 ft - (12497 mm) |
| Foot | 15 ft - (4572 mm) |
| Leech | 38 ft - (11582 mm) |
| Percentage LP | * 111.2 % |
| Length Perpendicular | * 13.9 ft - (4237 mm) |
| Deck Angle | * 5.67 ° |
| Area | * 284.98 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 42.09 ft - (12829 mm) |
| Foot | * 20 ft - (6096 mm) |
| Leech | * 39.82 ft - (12137 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18.75 ft - (5715 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 394.59 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 42 ft - (12802 mm) |
| Foot | 23 ft - (7010 mm) |
| Leech | 39.5 ft - (12040 mm) |
| Perc LP | * 165 % |
| Area | * 724 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
