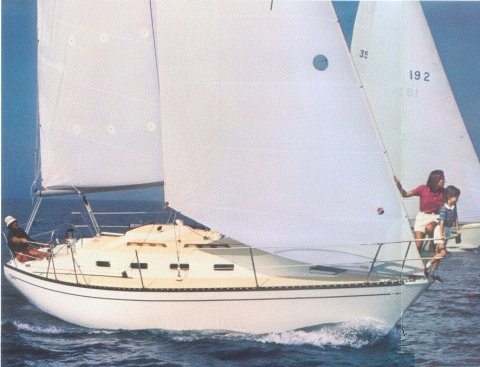

TARTAN 3000
Description
The TARTAN 3000 is a compact cruiser designed by Sparkman & Stephens. She strikes a balance between performance and comfort, Her generous sail plan delivers excellent light-air performance. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | Sparkman & Stephens |
|---|---|
| Length | 30.000 ft |
| LOA | 29.960 ft |
| LWL | 25.250 ft |
| Beam | 10.080 ft |
| Displacement | 7950 lb |
| Max Draft | 5.170 ft |
The standard boat dimensions
| i | 39 ft |
|---|---|
| j | 12.50 ft |
| p | 34.25 ft |
| e | 11.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 39 ft | 12.50 ft | 34.25 ft | 11.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 34.25 ft - (10439 mm) |
| Foot | * 11.5 ft - (3505 mm) |
| Leech-AftHdBd | * 35.61 ft - (10854 mm) |
| Tack Ang | * 88.02 ° |
| Diag (clew/head) | * 35.75 ft - (10897 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | 196.72 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 38.91 ft - (11860 mm) |
| Foot | * 20.19 ft - (6154 mm) |
| Leech | * 36.59 ft - (11153 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18.75 ft - (5715 mm) |
| Deck Angle | * 4 ° |
| Area | 364.78 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 38.91 |
| MidGirth | * 22.5 ft - (6858 mm) |
| Foot | * 22.5 ft - (6858 mm) |
| Perc LP | * 180 |
| Area | 744.15 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 32.76 ft - (9985 mm) |
| Foot | * 16.56 ft - (5047 mm) |
| Leech | * 28.44 ft - (8669 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 14.38 ft - (4383 mm) |
| Deck Angle | * 12 ° |
| Area | 235.47 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
