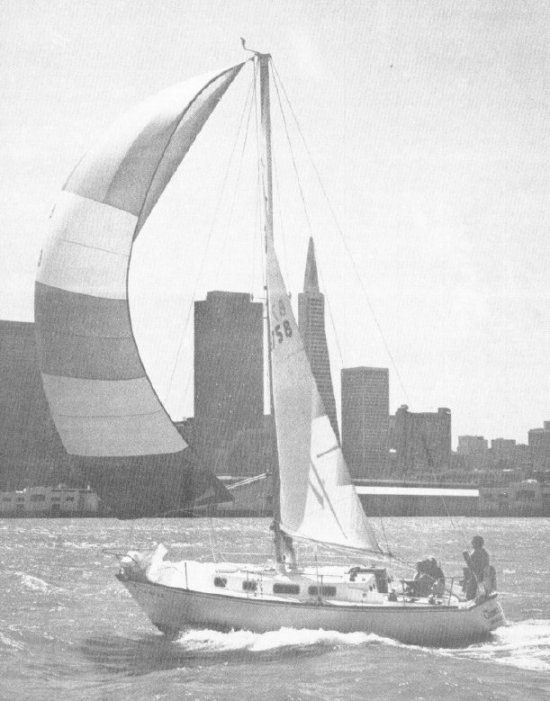

Tartan 30
Description
LWL 24' 3" Beam 10' 0" Draft 4' 11" Disp. 8750
Construction Details
| Designer | Sparkman and Stevens |
|---|---|
| Length | 29.920 ft |
| LOA | 29.920 ft |
| LWL | 24.250 ft |
| Beam | 10.000 ft |
| Displacement | 8750 lb |
| Max Draft | 4.920 ft |
The standard boat dimensions
| i | 39 ft |
|---|---|
| j | 13 ft |
| p | 34 ft |
| e | 11.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 39 ft | 13 ft | 34 ft | 11.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 41.25 ft - (12573 mm) |
| Foot | 23.4 ft - (7132 mm) |
| Leech | 39 ft - (11887 mm) |
| Perc LP | * 165 |
| Area | * 724 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 40 ft - (12192 mm) |
| Foot | 22 ft - (6706 mm) |
| Leech | 38 ft - (11582 mm) |
| Perc LP | * 165 |
| Area | * 660 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 39.05 ft - (11902 mm) |
| Foot | * 21.97 ft - (6696 mm) |
| Leech | * 34.89 ft - (10634 mm) |
| Perc LP | * 150 |
| Length Perp | * 19.5 |
| Deck Angle | * 8.99 ° |
| Area | * 380.76 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 38 ft - (11582 mm) |
| Foot | 18 ft - (5486 mm) |
| Leech | 36 ft - (10973 mm) |
| Percentage LP | * 129.92 % |
| Length Perpendicular | * 16.89 ft - (5148 mm) |
| Deck Angle | * 1.75 ° |
| Area | * 321 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 38 ft - (11582 mm) |
| Foot | 21.167 ft - (6452 mm) |
| Leech | 35.5 ft - (10820 mm) |
| Percentage LP | * 149.77 % |
| Length Perpendicular | * 19.47 ft - (5934 mm) |
| Deck Angle | * 4.69 ° |
| Area | * 369.86 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 39.05 ft - (11902 mm) |
| Foot | * 21.1 ft - (6431 mm) |
| Leech | * 36.61 ft - (11159 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 19.5 ft - (5944 mm) |
| Deck Angle | * 4.03 ° |
| Area | * 380.7 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 37.25 ft - (11354 mm) |
| Foot | 17 ft - (5182 mm) |
| Leech | 34.25 ft - (10439 mm) |
| Percentage LP | * 120 % |
| Length Perpendicular | * 15.6 ft - (4755 mm) |
| Deck Angle | * 4.99 ° |
| Area | * 290.53 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 39.25 ft - (11963 mm) |
| Foot | 20.25 ft - (6172 mm) |
| Leech | 37 ft - (11278 mm) |
| Percentage LP | * 145 % |
| Length Perpendicular | * 18.85 ft - (5745 mm) |
| Deck Angle | * 3.03 ° |
| Area | * 369.85 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 38.5 ft - (11735 mm) |
| Foot | 14.33 ft - (4368 mm) |
| Leech | 35 ft - (10668 mm) |
| Percentage LP | * 100.08 % |
| Length Perpendicular | * 13.01 ft - (3965 mm) |
| Deck Angle | * 6.35 ° |
| Area | * 250.44 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 30 ft - (9144 mm) |
| Foot | 13.33 ft - (4063 mm) |
| Leech | 23.33 ft - (7111 mm) |
| Percentage LP | * 76.38 % |
| Length Perpendicular | * 9.93 ft - (3027 mm) |
| Deck Angle | * 23.39 ° |
| Area | * 148.99 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 37.75 ft - (11506 mm) |
| Foot | * 15.92 ft - (4852 mm) |
| Leech | 34 ft - (10363 mm) |
| Percentage LP | * 110.31 % |
| Length Perpendicular | * 14.34 ft - (4371 mm) |
| Deck Angle | * 7.33 ° |
| Area | * 270.61 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 35.5 ft - (10820 mm) |
| Foot | 12 ft - (3658 mm) |
| Leech | 32.25 ft - (9830 mm) |
| Percentage LP | * 83.46 % |
| Length Perpendicular | * 10.85 ft - (3307 mm) |
| Deck Angle | * 6.87 ° |
| Area | * 192.56 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 29 ft - (8839 mm) |
| Foot | 12 ft - (3658 mm) |
| Leech | 26 ft - (7925 mm) |
| Percentage LP | * 82.69 % |
| Length Perpendicular | * 10.75 ft - (3277 mm) |
| Deck Angle | * 7.92 ° |
| Area | * 155.91 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 34 ft - (10363 mm) |
| Foot | * 11.5 ft - (3505 mm) |
| Leech-AftHdBd | * 35.27 ft - (10750 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 35.51 ft - (10823 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 201.85 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 39.05 |
| MidGirth | * 23.4 ft - (7132 mm) |
| Foot | * 23.4 ft - (7132 mm) |
| Perc LP | * 180 |
| Area | * 777 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
