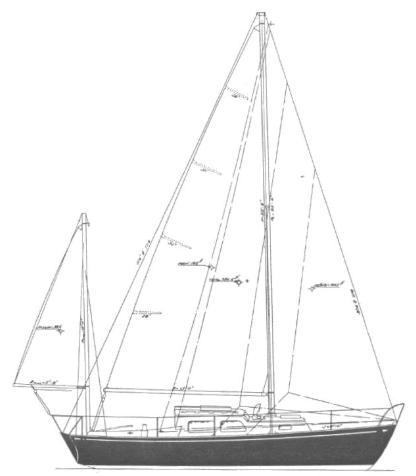

Tartan 27 Yawl
Description
The TARTAN 27 YAWL is a compact cruiser. Her substantial displacement provides a comfortable, sea-kindly motion, with a deep keel providing excellent upwind performance and stability. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 27.000 ft |
| LOA | 27.000 ft |
| LWL | 21.420 ft |
| Beam | 8.580 ft |
| Displacement | 7400 lb |
| Max Draft | 6.330 ft |
| Min Draft | 3.170 ft |
The standard boat dimensions
| i | 33.50 ft |
|---|---|
| j | 9.83 ft |
| p | 29.50 ft |
| e | 13 ft |
| p2 | 12.92 ft |
| e2 | 5.67 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 33.50 ft | 9.83 ft | 29.50 ft | 13 ft | 12.92 ft | 5.67 ft |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 29.5 ft - (8992 mm) |
| Foot | * 13 ft - (3962 mm) |
| Leech | * 31.54 ft - (9613 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 31.82 ft - (9699 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 198.19 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 27.93 ft - (8513 mm) |
| Foot | * 12.85 ft - (3917 mm) |
| Leech | * 24.59 ft - (7495 mm) |
| Percentage LP | * 115.06 % |
| Length Perpendicular | * 11.31 ft - (3447 mm) |
| Deck Angle | * 11.97 ° |
| Area | * 157.97 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 33.17 ft - (10110 mm) |
| Foot | * 15.73 ft - (4795 mm) |
| Leech | * 31.39 ft - (9568 mm) |
| Percentage LP | * 150.05 % |
| Length Perpendicular | * 14.75 ft - (4496 mm) |
| Deck Angle | * 3.96 ° |
| Area | * 244.65 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 33.17 ft - (10110 mm) |
| Foot | * 16.22 ft - (4944 mm) |
| Leech | * 30.52 ft - (9302 mm) |
| Perc LP | * 165 % |
| Area | * 404 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 33.17 ft - (10110 mm) |
| MidGirth | * 17.69 ft - (5392 mm) |
| Foot | * 17.69 ft - (5392 mm) |
| Perc LP | * 180 % |
| Area | * 499 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | * 12.92 ft - (3938 mm) |
| Foot | * 5.67 ft - (1728 mm) |
| Leech-AftHdBd | * 13.8 ft - (4206 mm) |
| Tack Ang | * 88.03 ° |
| Diag (clew/head) | * 13.93 ft - (4246 mm) |
| Head (inches) | * 3.5 in - (89 mm) |
| Area (no Roach) | * 38.42 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 19.2 ft - (5852 mm) |
| Foot | * 7.23 ft - (2204 mm) |
| Leech | * 16.14 ft - (4919 mm) |
| Perc LP | * 60.02 % |
| Length Perp | * 5.9 ft - (1798 mm) |
| Deck Angle | * 18.94 ° |
| Area | * 56.65 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
