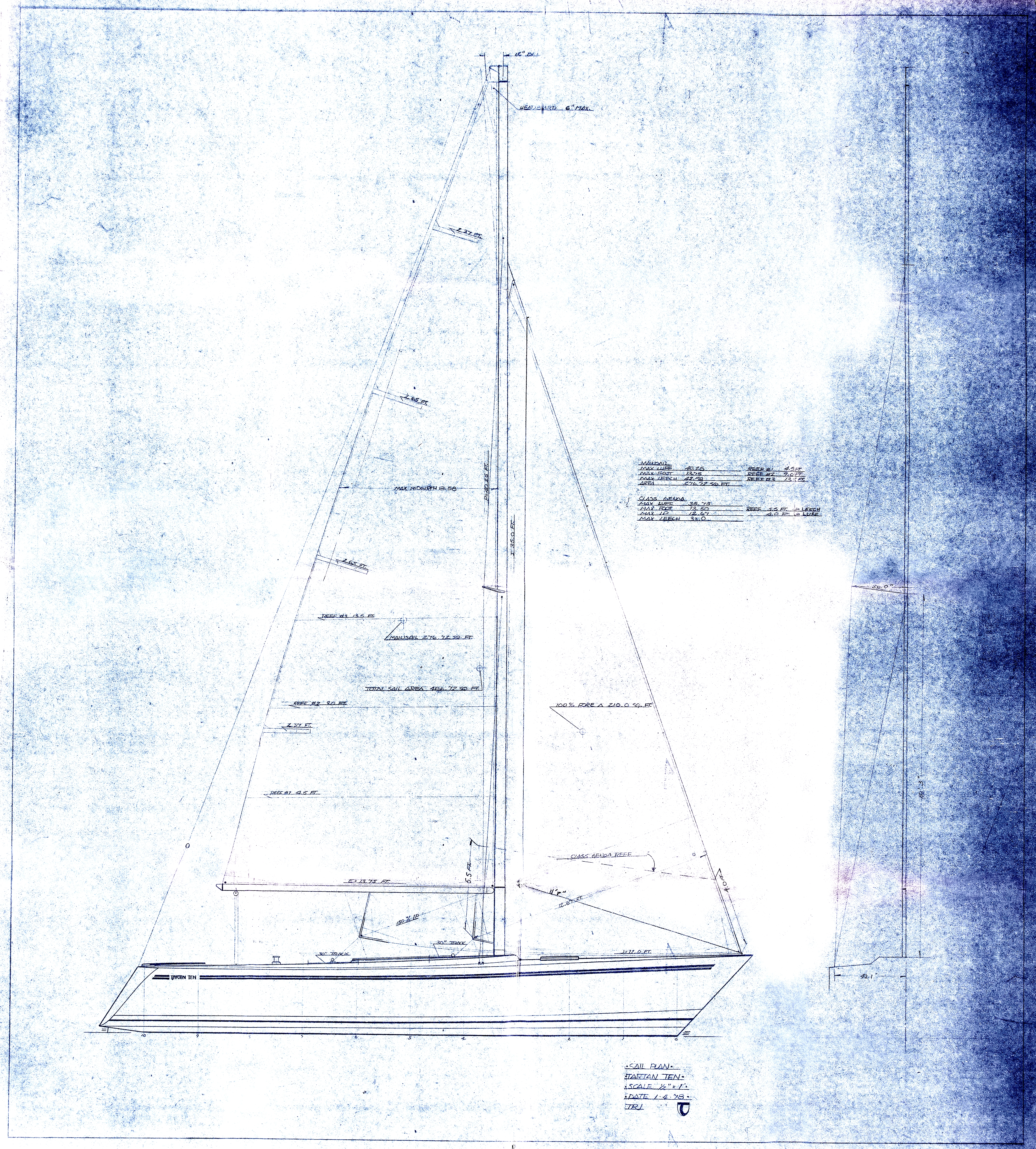

Tartan 10 See 'Tartan Ten'
Description
The TARTAN 10 see 'TARTAN TEN' is a sailboat. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 35 ft |
|---|---|
| j | 12 ft |
| p | 40.25 ft |
| e | 13.75 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 35 ft | 12 ft | 40.25 ft | 13.75 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 40.25 ft - (12268 mm) |
| Foot | * 13.75 ft - (4191 mm) |
| Leech | * 41.81 ft - (12744 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 42.08 ft - (12826 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 285.38 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 29.6 ft - (9022 mm) |
| Foot | * 16.09 ft - (4904 mm) |
| Leech | * 25.4 ft - (7742 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 13.8 ft - (4206 mm) |
| Deck Angle | * 12.03 ° |
| Area | * 204.22 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 35.75 ft - (10897 mm) |
| Foot | 13.7 ft - (4176 mm) |
| Leech | 33 ft - (10058 mm) |
| Percentage LP | * 105.42 % |
| Length Perpendicular | * 12.65 ft - (3856 mm) |
| Deck Angle | * 3.7 ° |
| Area | * 226.05 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 35.15 ft - (10714 mm) |
| Foot | * 19.54 ft - (5956 mm) |
| Leech | * 32.91 ft - (10031 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18 ft - (5486 mm) |
| Deck Angle | * 3.96 ° |
| Area | * 316.38 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 35.15 ft - (10714 mm) |
| MidGirth | * 21.6 ft - (6584 mm) |
| Foot | * 21.6 ft - (6584 mm) |
| Perc LP | * 180 % |
| Area | * 645 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
