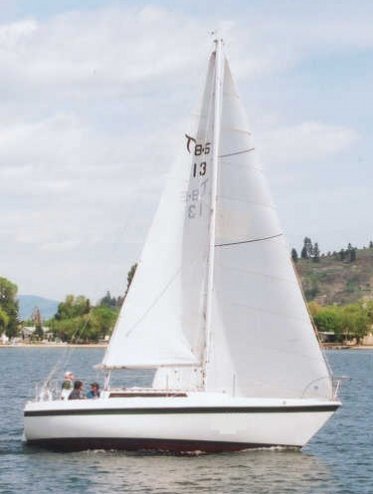

Tanzer 8.5
Description
L.W.L.: 23' 9" (7.24 m) Beam: 9' 6" (2.90 m) Draft: 4' 4" (1.32 m) Displacement: 7400 lbs. (3364 kg.) Ballast: 3000 lbs. (1364 kg.)
Construction Details
| Designer | Johann Tanzer |
|---|---|
| Length | 27.920 ft |
| LOA | 27.920 ft |
| LWL | 23.750 ft |
| Beam | 9.500 ft |
| Displacement | 7400 lb |
| Max Draft | 4.330 ft |
The standard boat dimensions
| i | 35.50 ft |
|---|---|
| j | 11.50 ft |
| p | 29.50 ft |
| e | 9 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 35.50 ft | 11.50 ft | 29.50 ft | 9 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 36 ft - (10973 mm) |
| Foot | 19.5 ft - (5944 mm) |
| Leech | 33.5 ft - (10211 mm) |
| Perc LP | * 165 |
| Area | * 526 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 33.75 ft - (10287 mm) |
| Foot | 18.58 ft - (5663 mm) |
| Leech | 32 ft - (9754 mm) |
| Percentage LP | * 150.26 % |
| Length Perpendicular | * 17.28 ft - (5267 mm) |
| Deck Angle | * 3.58 ° |
| Area | * 291.66 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 35.45 ft - (10805 mm) |
| Foot | * 18.78 ft - (5724 mm) |
| Leech | * 34.7 ft - (10577 mm) |
| Percentage LP | * 155.57 % |
| Length Perpendicular | * 17.89 ft - (5453 mm) |
| Deck Angle | * -0.23 ° |
| Area | * 317.08 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 29.85 ft - (9098 mm) |
| Foot | * 15.39 ft - (4691 mm) |
| Leech | * 27.01 ft - (8233 mm) |
| Percentage LP | * 120.61 % |
| Length Perpendicular | * 13.87 ft - (4228 mm) |
| Deck Angle | * 7.74 ° |
| Area | * 206.99 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 31.25 ft - (9525 mm) |
| Foot | 14.25 ft - (4343 mm) |
| Leech | 27.75 ft - (8458 mm) |
| Percentage LP | * 110 % |
| Length Perpendicular | * 12.65 ft - (3856 mm) |
| Deck Angle | * 9.43 ° |
| Area | * 197.72 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 29.5 ft - (8992 mm) |
| Foot | * 9 ft - (2743 mm) |
| Leech-AftHdBd | * 30.36 ft - (9254 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 30.54 ft - (9309 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 136.94 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 35.45 |
| MidGirth | * 20.7 ft - (6309 mm) |
| Foot | * 20.7 ft - (6309 mm) |
| Perc LP | * 180 |
| Area | * 624 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
