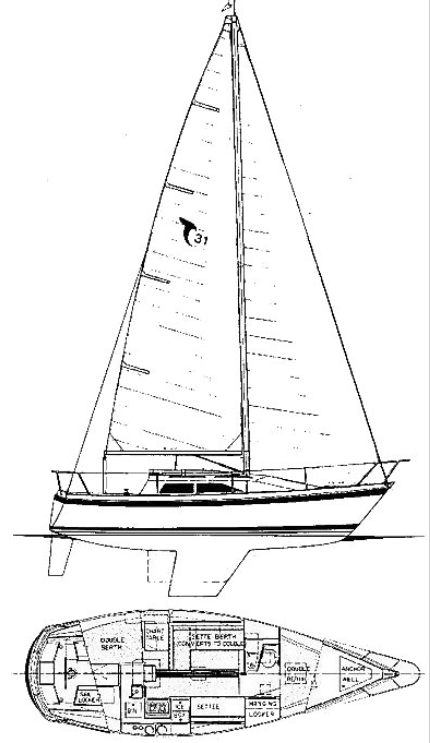

TANZER 31
Description
The TANZER 31 is a mid-sized cruiser designed by C&C Design. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | C&C Design |
|---|---|
| Length | 31.000 ft |
| LOA | 30.580 ft |
| LWL | 25.000 ft |
| Beam | 10.500 ft |
| Displacement | 8300 lb |
| Max Draft | 5.250 ft |
The standard boat dimensions
| i | 41 ft |
|---|---|
| j | 12 ft |
| p | 37 ft |
| e | 12 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 41 ft | 12 ft | 37 ft | 12 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 37 ft - (11278 mm) |
| Foot | * 12 ft - (3658 mm) |
| Leech-AftHdBd | * 38.26 ft - (11662 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 38.5 ft - (11735 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 228.89 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 39.25 ft - (11963 mm) |
| Foot | 16.58 ft - (5054 mm) |
| Leech | 37 ft - (11278 mm) |
| Percentage LP | * 129.75 % |
| Length Perpendicular | * 15.57 ft - (4746 mm) |
| Deck Angle | * 3.75 ° |
| Area | * 305.64 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 40.58 ft - (12369 mm) |
| MidGirth | * 21.6 ft - (6584 mm) |
| Foot | * 21.6 ft - (6584 mm) |
| Perc LP | * 180 |
| Area | * 745 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 40.58 ft - (12369 mm) |
| Foot | * 19.19 ft - (5849 mm) |
| Leech | * 38.41 ft - (11707 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18 ft - (5486 mm) |
| Deck Angle | * 3.96 ° |
| Area | * 365.24 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 34.18 ft - (10418 mm) |
| Foot | * 15.68 ft - (4779 mm) |
| Leech | * 30.11 ft - (9178 mm) |
| Percentage LP | * 115.08 % |
| Length Perpendicular | * 13.81 ft - (4209 mm) |
| Deck Angle | * 11.95 ° |
| Area | * 236.03 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
