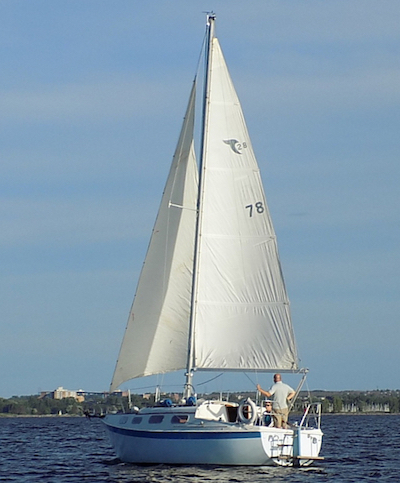

Tanzer 28
Description
L.W.L.: 23' 6" (7.16 m) Beam: 9' 10" (3.00 m) Draft: 4' 4" (1.32 m) Displacement: 6800 lbs. (3087 kg.) Ballast: 3000 lbs. (1362 kg.)
Construction Details
| Designer | Johann Tanzer |
|---|---|
| Length | 27.580 ft |
| LOA | 27.580 ft |
| LWL | 23.500 ft |
| Beam | 9.820 ft |
| Displacement | 6500 lb |
| Max Draft | 4.080 ft |
The standard boat dimensions
| i | 34.40 ft |
|---|---|
| j | 12.58 ft |
| p | 28 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 34.40 ft | 12.58 ft | 28 ft | 10 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 35 ft - (10668 mm) |
| Foot | 21 ft - (6401 mm) |
| Leech | 33 ft - (10058 mm) |
| Perc LP | * 165 |
| Area | * 551 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 33.75 ft - (10287 mm) |
| Foot | 18.75 ft - (5715 mm) |
| Leech | 31 ft - (9449 mm) |
| Percentage LP | * 135.37 % |
| Length Perpendicular | * 17.03 ft - (5191 mm) |
| Deck Angle | * 4.65 ° |
| Area | * 287.37 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 34.83 ft - (10616 mm) |
| Foot | 20.67 ft - (6300 mm) |
| Leech | 32.42 ft - (9882 mm) |
| Percentage LP | * 149.92 % |
| Length Perpendicular | * 18.86 ft - (5749 mm) |
| Deck Angle | * 4.07 ° |
| Area | * 328.44 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 29.3 ft - (8931 mm) |
| Foot | * 17.08 ft - (5206 mm) |
| Leech | * 24.87 ft - (7580 mm) |
| Percentage LP | * 115.02 % |
| Length Perpendicular | * 14.47 ft - (4410 mm) |
| Deck Angle | * 12 ° |
| Area | * 212 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 30.5 ft - (9296 mm) |
| Foot | 16 ft - (4877 mm) |
| Leech | 26.5 ft - (8077 mm) |
| Percentage LP | * 110.41 % |
| Length Perpendicular | * 13.89 ft - (4234 mm) |
| Deck Angle | * 9.64 ° |
| Area | * 211.88 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 28 ft - (8534 mm) |
| Foot | * 10 ft - (3048 mm) |
| Leech-AftHdBd | * 29.19 ft - (8897 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 29.4 ft - (8961 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 144.46 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 34.8 |
| MidGirth | * 22.64 ft - (6901 mm) |
| Foot | * 22.64 ft - (6901 mm) |
| Perc LP | * 180 |
| Area | * 670 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
