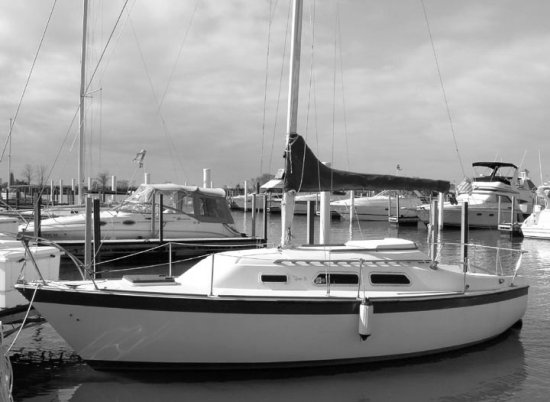

TANZER 27
Description
LWL 22'6" Disp (Fin) 6200, (Shoal) 6700 Ballast (Fin) 2250, (Shoal) 2500
Construction Details
| Designer | C. Raymond Hunt Associates |
|---|---|
| Length | 26.580 ft |
| LOA | 26.580 ft |
| LWL | 22.500 ft |
| Beam | 9.500 ft |
| Displacement | 6200 lb |
| Max Draft | 4.500 ft |
The standard boat dimensions
| i | 35 ft |
|---|---|
| j | 11.75 ft |
| p | 28.50 ft |
| e | 9.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 35 ft | 11.75 ft | 28.50 ft | 9.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | * 35.07 ft - (10689 mm) |
| Foot | * 19.08 ft - (5816 mm) |
| Leech | * 32.87 ft - (10019 mm) |
| Percentage LP | * 149.96 % |
| Length Perpendicular | * 17.62 ft - (5371 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 308.96 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 33.75 ft - (10287 mm) |
| Foot | 19.083 ft - (5816 mm) |
| Leech | 31.75 ft - (9677 mm) |
| Percentage LP | * 149.96 % |
| Length Perpendicular | * 17.62 ft - (5371 mm) |
| Deck Angle | * 4.05 ° |
| Area | * 297.28 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 35.07 ft - (10689 mm) |
| Foot | * 19.39 ft - (5910 mm) |
| Leech | * 32.26 ft - (9833 mm) |
| Perc LP | * 165 |
| Area | * 510 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 28.5 ft - (8687 mm) |
| Foot | * 9.5 ft - (2896 mm) |
| Leech-AftHdBd | * 29.53 ft - (9001 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 29.73 ft - (9062 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 139.99 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 29.54 ft - (9004 mm) |
| Foot | * 15.69 ft - (4782 mm) |
| Leech | * 25.44 ft - (7754 mm) |
| Percentage LP | * 114.98 % |
| Length Perpendicular | * 13.51 ft - (4118 mm) |
| Deck Angle | * 12.02 ° |
| Area | * 199.51 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 35.07 |
| MidGirth | * 21.15 ft - (6447 mm) |
| Foot | * 21.15 ft - (6447 mm) |
| Perc LP | * 180 |
| Area | * 630 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
