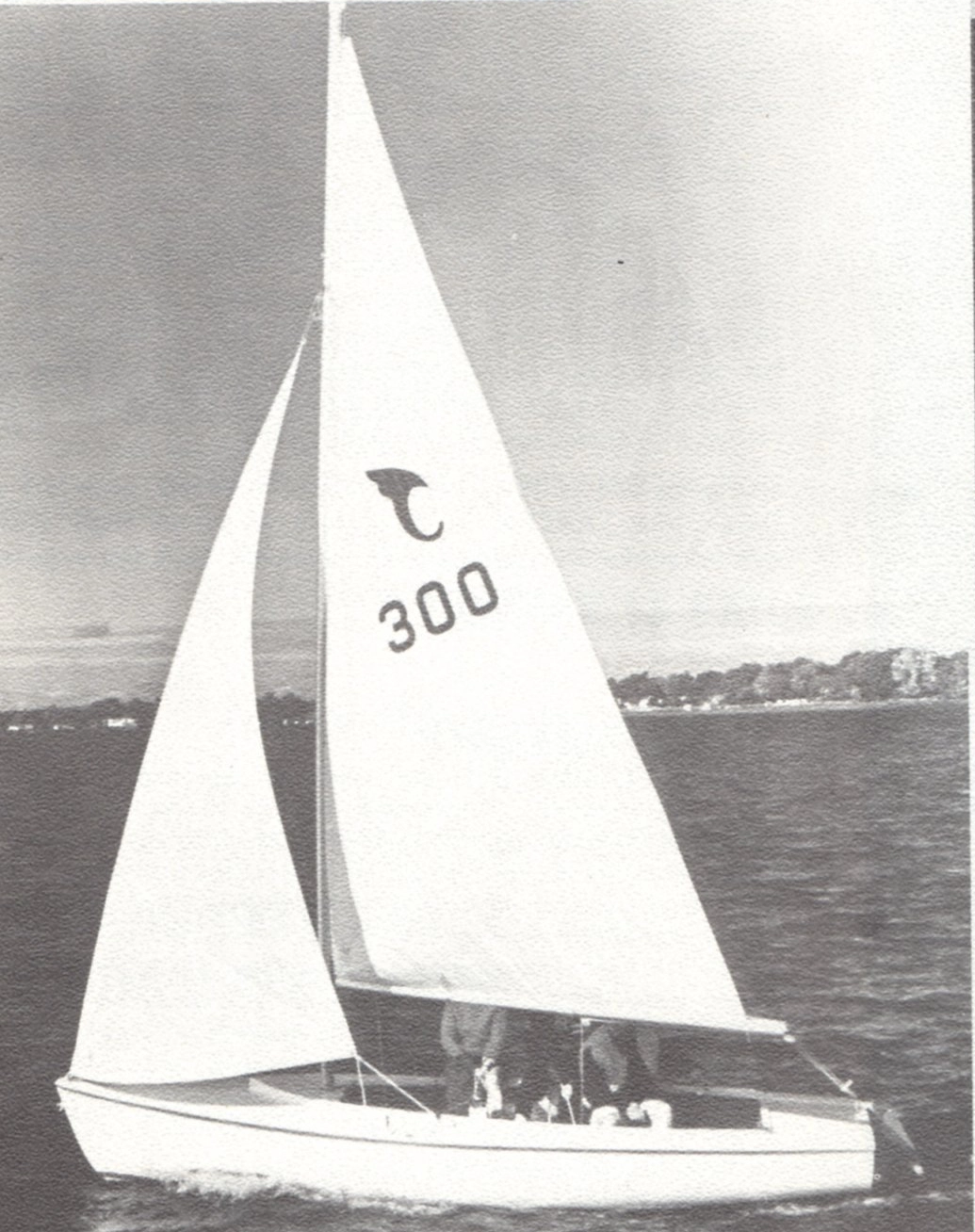

Tanzer 16
Description
450 lbs Disp. 15'7" LWL 6'2" Beam 7" Draft CB up 2'9" Draft CB down
Sail calculations are not available for this boat as no dimensions are available.
Construction Details
| Designer | Johann Tanzer |
|---|---|
| Length | 16.330 ft |
| LOA | 16.330 ft |
| LWL | 15.250 ft |
| Beam | 6.170 ft |
| Displacement | 450 lb |
| Max Draft | 2.750 ft |
| Min Draft | 0.580 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | 16.083 ft - (4902 mm) |
| Foot | 7.25 ft - (2210 mm) |
| Leech | 15.33 ft - (4673 mm) |
| Length Perpendicular | * 6.85 ft - (2088 mm) |
| Area | * 55.1 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 15.92 ft - (4852 mm) |
| Foot | 8.5 ft - (2591 mm) |
| Leech | 15.33 ft - (4673 mm) |
| Length Perpendicular | * 8.01 ft - (2441 mm) |
| Area | * 63.75 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 14.67 ft - (4471 mm) |
| Foot | 5.92 ft - (1804 mm) |
| Leech | 12.083 ft - (3683 mm) |
| Length Perpendicular | * 4.73 ft - (1442 mm) |
| Area | * 34.73 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 19.25 ft - (5867 mm) |
| Foot | 9.37 ft - (2856 mm) |
| Leech-AftHdBd | * 21.31 ft - (6495 mm) |
| Tack Ang | * 90.62 ° |
| Diag (clew/head) | 21.5 ft - (6553 mm) |
| Head (inches) | 4 in |
| Area (no Roach) | * 93.11 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | 17.25 |
| MidGirth | 13 ft - (3962 mm) |
| Foot | 14 ft - (4267 mm) |
| Area | * 205 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
