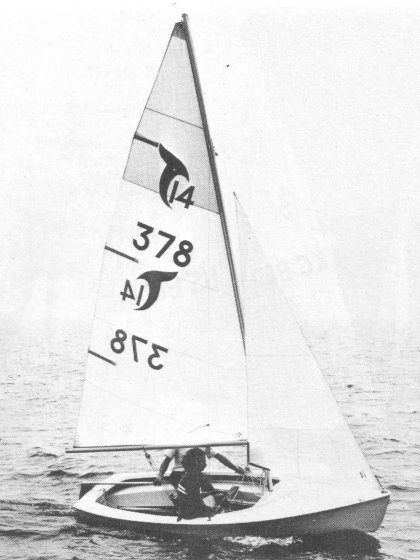

Tanzer 14
Description
The TANZER 14 is a dinghy designed by Johann Tanzer. This nimble dinghy is designed for responsive sailing and easy handling, making her ideal for exploring shallow waters and protected anchorages. Perfect for day sailing, club racing, or teaching young sailors the ropes.
Sail calculations are not available for this boat as no dimensions are available.
Construction Details
| Designer | Johann Tanzer |
|---|---|
| Length | 14.000 ft |
| LOA | 13.500 ft |
| LWL | 12.420 ft |
| Beam | 5.500 ft |
| Displacement | 315 lb |
| Max Draft | 2.750 ft |
| Min Draft | 0.420 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | 12 ft - (3658 mm) |
| Foot | 5.56 ft - (1695 mm) |
| Leech | 10 ft - (3048 mm) |
| Length Perpendicular | * 4.6 ft - (1402 mm) |
| Area | * 27.61 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 14.75 ft - (4496 mm) |
| Foot | 7.75 ft - (2362 mm) |
| Leech-AftHdBd | * 16.22 ft - (4944 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 16.42 ft - (5005 mm) |
| Head (inches) | 4 in |
| Area (no Roach) | * 59.3 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
