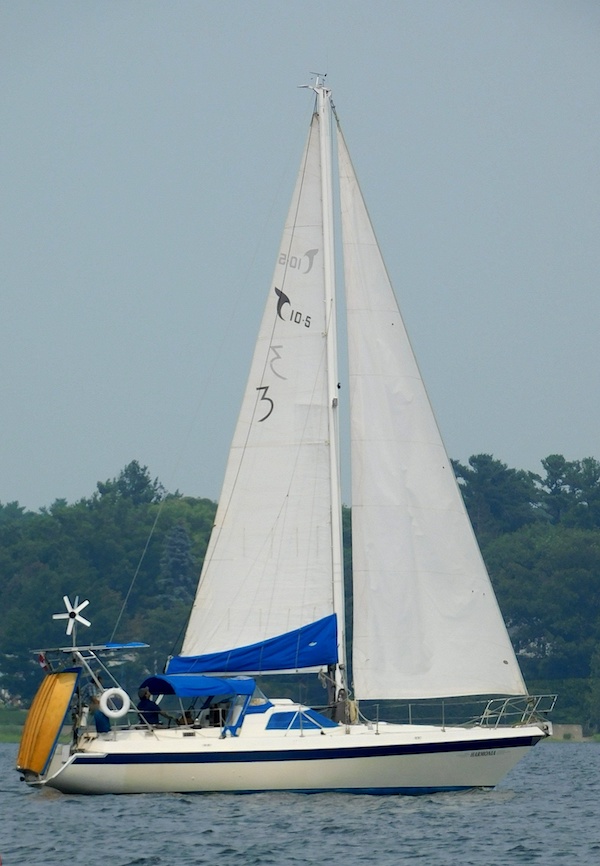

Tanzer 10.5
Description
L.W.L.: 27' 6" (8.38 m) Beam: 11' 6" (3.51 m) Draft: 25" to 6' 6" (.6 - 2 m) Displ: 13,000 lbs. (5897 kg.) Ballast: 5700 lbs. (2585 kg.)
Construction Details
| Designer | Johann Tanzer |
|---|---|
| Length | 34.420 ft |
| LOA | 32.670 ft |
| LWL | 27.500 ft |
| Beam | 11.860 ft |
| Displacement | 13000 lb |
| Max Draft | 6.670 ft |
| Min Draft | 2.000 ft |
The standard boat dimensions
| i | 43 ft |
|---|---|
| j | 14.14 ft |
| p | 37.66 ft |
| e | 13 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 43 ft | 14.14 ft | 37.66 ft | 13 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | * 43 ft - (13106 mm) |
| Foot | * 22.91 ft - (6983 mm) |
| Leech | * 40.36 ft - (12302 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 21.21 ft - (6465 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 456 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 36.21 ft - (11037 mm) |
| Foot | * 18.81 ft - (5733 mm) |
| Leech | * 31.31 ft - (9543 mm) |
| Percentage LP | * 114.99 % |
| Length Perpendicular | * 16.26 ft - (4956 mm) |
| Deck Angle | * 11.97 ° |
| Area | * 294.41 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 37.66 ft - (11479 mm) |
| Foot | * 13 ft - (3962 mm) |
| Leech-AftHdBd | * 39.14 ft - (11930 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 39.41 ft - (12012 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 252.9 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 43 |
| MidGirth | * 25.45 ft - (7757 mm) |
| Foot | * 25.45 ft - (7757 mm) |
| Perc LP | * 180 |
| Area | * 930 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
