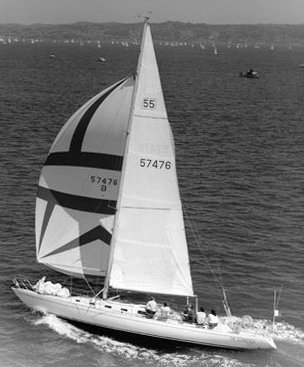

Swede 55
Description
The SWEDE 55 is a luxury yacht designed by Knud Reimers. This substantial yacht offers spacious accommodations and excellent seakeeping, Her generous sail plan delivers excellent light-air performance. Built for luxury cruising anywhere in the world with style and comfort.
Construction Details
| Designer | Knud Reimers |
|---|---|
| Length | 53.000 ft |
| LOA | 53.000 ft |
| LWL | 39.000 ft |
| Beam | 9.580 ft |
| Displacement | 16640 lb |
| Max Draft | 6.420 ft |
The standard boat dimensions
| i | 53.90 ft |
|---|---|
| j | 15 ft |
| p | 49.80 ft |
| e | 15.90 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 53.90 ft | 15 ft | 49.80 ft | 15.90 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | * 53.15 ft - (16200 mm) |
| Foot | * 23.88 ft - (7279 mm) |
| Leech | * 50.45 ft - (15377 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 22.5 ft - (6858 mm) |
| Deck Angle | * 4 ° |
| Area | 597.98 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 44.76 ft - (13643 mm) |
| Foot | * 19.46 ft - (5931 mm) |
| Leech | * 39.7 ft - (12101 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 17.25 ft - (5258 mm) |
| Deck Angle | * 12 ° |
| Area | 386.09 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 49.8 ft - (15179 mm) |
| Foot | * 15.9 ft - (4846 mm) |
| Leech-AftHdBd | * 51.59 ft - (15725 mm) |
| Tack Ang | * 87.98 ° |
| Diag (clew/head) | * 51.74 ft - (15770 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | 395.51 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 53.15 |
| MidGirth | * 27 ft - (8230 mm) |
| Foot | * 27 ft - (8230 mm) |
| Perc LP | * 180 |
| Area | 1219.79 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
