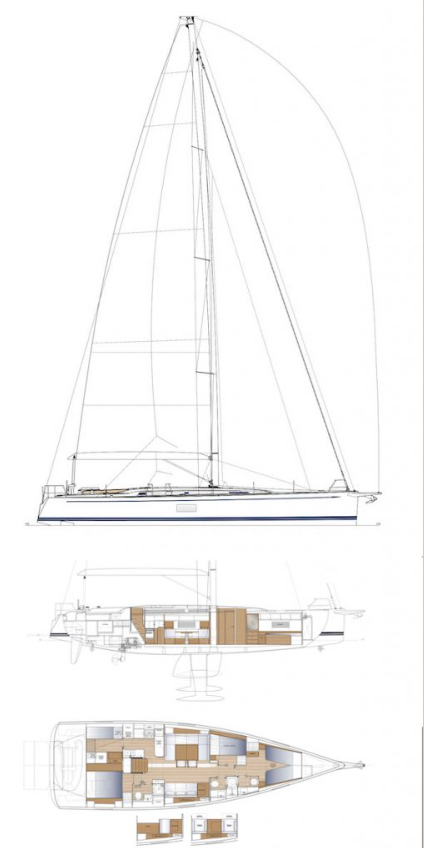

SWAN 55 CENTERBOARD
Description
The SWAN 55 CENTERBOARD is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 55.000 ft |
The standard boat dimensions
| i | 73.49 ft |
|---|---|
| j | 23.20 ft |
| p | 65.46 ft |
| e | 20.67 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 73.49 ft | 23.20 ft | 65.46 ft | 20.67 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 61.65 ft - (18791 mm) |
| Foot | * 30.66 ft - (9345 mm) |
| Leech | * 53.65 ft - (16353 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 26.68 ft - (8132 mm) |
| Deck Angle | * 12 ° |
| Area | 822.44 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 73.21 ft - (22314 mm) |
| MidGirth | * 41.76 ft - (12728 mm) |
| Foot | * 41.76 ft - (12728 mm) |
| Perc LP | * 180 |
| Area | 2598.66 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 65.46 ft - (19952 mm) |
| Foot | * 20.67 ft - (6300 mm) |
| Leech-AftHdBd | * 67.8 ft - (20665 mm) |
| Tack Ang | * 87.99 ° |
| Diag (clew/head) | * 67.95 ft - (20711 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | 675.91 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 73.21 ft - (22314 mm) |
| Foot | * 37.41 ft - (11403 mm) |
| Leech | * 68.92 ft - (21007 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 34.8 ft - (10607 mm) |
| Deck Angle | * 4 ° |
| Area | 1273.94 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
