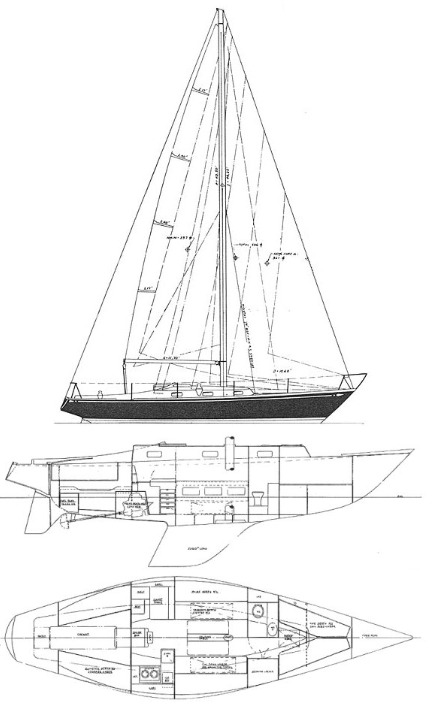

SWAN 37
Description
The SWAN 37 is a cruising yacht designed by Sparkman & Stephens. Built for serious cruising, she offers reassuring stability in all conditions, Her generous sail plan delivers excellent light-air performance. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | Sparkman & Stephens |
|---|---|
| Length | 36.000 ft |
| LOA | 36.500 ft |
| LWL | 27.250 ft |
| Beam | 10.670 ft |
| Displacement | 15400 lb |
| Max Draft | 6.100 ft |
The standard boat dimensions
| i | 46.26 ft |
|---|---|
| j | 15.58 ft |
| p | 40.50 ft |
| e | 11.70 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 46.26 ft | 15.58 ft | 40.50 ft | 11.70 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 40.5 ft - (12344 mm) |
| Foot | * 11.7 ft - (3566 mm) |
| Leech-AftHdBd | * 41.52 ft - (12655 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 41.76 ft - (12728 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 244.4 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 46.37 ft - (14134 mm) |
| Foot | * 25.32 ft - (7718 mm) |
| Leech | * 43.45 ft - (13244 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 23.37 ft - (7123 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 541.86 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 39.05 ft - (11902 mm) |
| Foot | * 20.82 ft - (6346 mm) |
| Leech | * 33.62 ft - (10247 mm) |
| Percentage LP | * 115.02 % |
| Length Perpendicular | * 17.92 ft - (5462 mm) |
| Deck Angle | * 12 ° |
| Area | * 349.85 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 46.37 |
| MidGirth | * 28.04 ft - (8547 mm) |
| Foot | * 28.04 ft - (8547 mm) |
| Perc LP | * 180 |
| Area | * 1105 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
