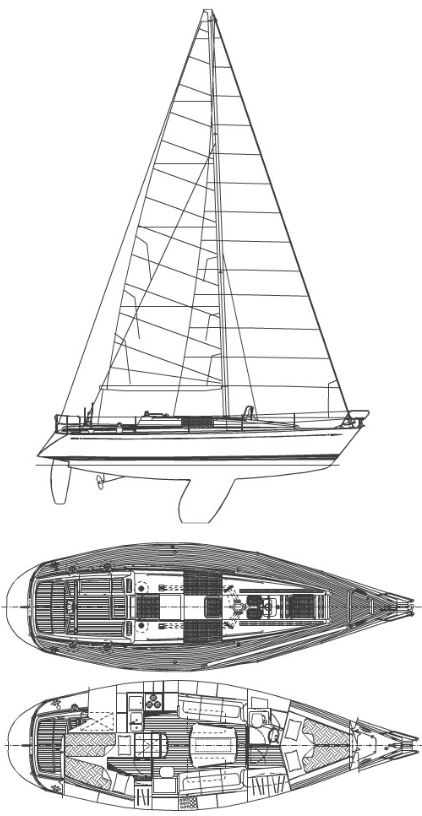

SWAN 36 SLOOP
Description
The SWAN 36 SLOOP is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 36.000 ft |
The standard boat dimensions
| i | 43.67 ft |
|---|---|
| j | 13.67 ft |
| p | 38.05 ft |
| e | 13.04 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 43.67 ft | 13.67 ft | 38.05 ft | 13.04 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 38.05 ft - (11598 mm) |
| Foot | * 13.04 ft - (3975 mm) |
| Leech-AftHdBd | * 39.52 ft - (12046 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 39.79 ft - (12128 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 256.28 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 43.47 ft - (13250 mm) |
| Foot | * 22.02 ft - (6712 mm) |
| Leech | * 40.96 ft - (12485 mm) |
| Percentage LP | * 150.04 % |
| Length Perpendicular | * 20.51 ft - (6251 mm) |
| Deck Angle | * 3.96 ° |
| Area | * 445.78 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 42.25 ft - (12878 mm) |
| Foot | 19.83 ft - (6044 mm) |
| Leech | 39.75 ft - (12116 mm) |
| Percentage LP | * 135.48 % |
| Length Perpendicular | * 18.52 ft - (5645 mm) |
| Deck Angle | * 3.54 ° |
| Area | * 391.3 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 36.61 ft - (11159 mm) |
| Foot | * 18.04 ft - (5499 mm) |
| Leech | * 31.9 ft - (9723 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 15.72 ft - (4791 mm) |
| Deck Angle | * 12 ° |
| Area | * 287.74 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 43.47 ft - (13250 mm) |
| MidGirth | * 24.61 ft - (7501 mm) |
| Foot | * 24.61 ft - (7501 mm) |
| Perc LP | * 180 |
| Area | * 909 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
