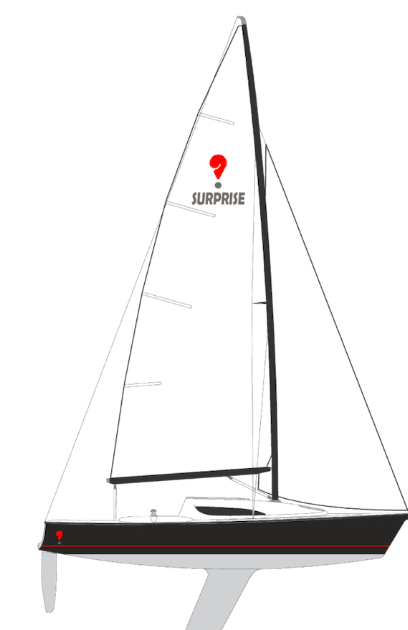

Surprise 25
Description
The Surprise 25 is a dinghy. This nimble dinghy is designed for responsive sailing and easy handling, making her ideal for exploring shallow waters and protected anchorages. Perfect for day sailing, club racing, or teaching young sailors the ropes.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 25.000 ft |
| LOA | 14.580 ft |
| LWL | 14.000 ft |
| Beam | 5.250 ft |
| Displacement | 360 lb |
| Max Draft | 3.830 ft |
| Min Draft | 0.330 ft |
The standard boat dimensions
| i | 26.41 ft |
|---|---|
| j | 6 ft |
| p | 29.53 ft |
| e | 10.83 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 26.41 ft | 6 ft | 29.53 ft | 10.83 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 29.53 ft - (9001 mm) |
| Foot | * 10.83 ft - (3301 mm) |
| Leech-AftHdBd | * 30.89 ft - (9415 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 31.1 ft - (9479 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 164.62 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 21.67 ft - (6605 mm) |
| Foot | * 7.6 ft - (2316 mm) |
| Leech | * 19.73 ft - (6014 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 6.9 ft - (2103 mm) |
| Deck Angle | * 11.98 ° |
| Area | * 74.76 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 25.73 ft - (7843 mm) |
| Foot | * 9.4 ft - (2865 mm) |
| Leech | * 24.71 ft - (7532 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 9 ft - (2743 mm) |
| Deck Angle | * 4 ° |
| Area | * 115.77 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 25.73 ft - (7843 mm) |
| Foot | * 9.9 ft - (3018 mm) |
| Leech | * 23.67 ft - (7215 mm) |
| Perc LP | * 165 |
| Area | * 191 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 25 ft - (7620 mm) |
| Foot | 6.33 ft - (1929 mm) |
| Leech | 23.75 ft - (7239 mm) |
| Percentage LP | * 100 % |
| Length Perpendicular | * 6 ft - (1829 mm) |
| Deck Angle | * 5.81 ° |
| Area | * 74.99 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 24.75 ft - (7544 mm) |
| Foot | 9.42 ft - (2871 mm) |
| Leech | 23.75 ft - (7239 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 9 ft - (2743 mm) |
| Deck Angle | * 4.32 ° |
| Area | * 111.41 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
