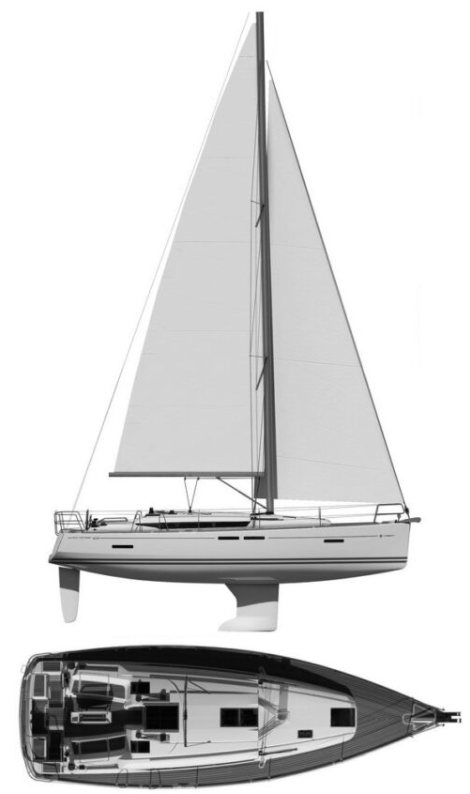

SUN ODYSSEY 409
Description
The SUN ODYSSEY 409 is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 40.490 ft |
The standard boat dimensions
| i | 50.85 ft |
|---|---|
| j | 14.83 ft |
| p | 49.21 ft |
| e | 16.08 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 50.85 ft | 14.83 ft | 49.21 ft | 16.08 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 49.21 ft - (14999 mm) |
| Foot | * 16.08 ft - (4901 mm) |
| Leech-AftHdBd | * 50.96 ft - (15533 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 51.23 ft - (15615 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 406.15 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 42.37 ft - (12914 mm) |
| Foot | * 19.36 ft - (5901 mm) |
| Leech | * 37.32 ft - (11375 mm) |
| Percentage LP | * 114.97 % |
| Length Perpendicular | * 17.05 ft - (5197 mm) |
| Deck Angle | * 12.02 ° |
| Area | * 361.19 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 50.32 ft - (15338 mm) |
| Foot | * 23.71 ft - (7227 mm) |
| Leech | * 47.61 ft - (14512 mm) |
| Percentage LP | * 149.97 % |
| Length Perpendicular | * 22.24 ft - (6779 mm) |
| Deck Angle | * 4.03 ° |
| Area | * 559.52 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 52 ft - (15850 mm) |
| Foot | 26 ft - (7925 mm) |
| Leech | 48 ft - (14630 mm) |
| Perc LP | * 165 |
| Area | * 1014 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
