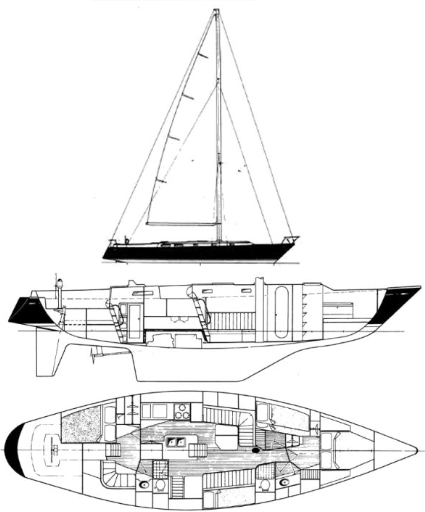

STEVENS 50
Description
The STEVENS 50 is a luxury yacht designed by Sparkman & Stephens. This substantial yacht offers spacious accommodations and excellent seakeeping, Her generous sail plan delivers excellent light-air performance. Built for luxury cruising anywhere in the world with style and comfort.
Construction Details
| Designer | Sparkman & Stephens |
|---|---|
| Length | 50.000 ft |
| LOA | 50.000 ft |
| LWL | 37.750 ft |
| Beam | 14.330 ft |
| Displacement | 31200 lb |
| Max Draft | 6.000 ft |
The standard boat dimensions
| i | 60.99 ft |
|---|---|
| j | 19.08 ft |
| p | 53.50 ft |
| e | 18 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 60.99 ft | 19.08 ft | 53.50 ft | 18 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | 60.75 ft - (18517 mm) |
| Foot | 26.33 ft - (8025 mm) |
| Leech | 53 ft - (16154 mm) |
| Percentage LP | * 120.13 % |
| Length Perpendicular | * 22.92 ft - (6986 mm) |
| Deck Angle | * 12.12 ° |
| Area | * 696.16 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 60.71 ft - (18504 mm) |
| Foot | * 31.48 ft - (9595 mm) |
| Leech | * 55.85 ft - (17023 mm) |
| Perc LP | * 165 |
| Area | * 1433 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 53.5 ft - (16307 mm) |
| Foot | * 18 ft - (5486 mm) |
| Leech-AftHdBd | * 55.58 ft - (16941 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 55.85 ft - (17023 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 492.93 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 60.75 ft - (18517 mm) |
| Foot | 32 ft - (9754 mm) |
| Leech | 54.2 ft - (16520 mm) |
| Percentage LP | * 149.16 % |
| Length Perpendicular | * 28.46 ft - (8675 mm) |
| Deck Angle | * 9.82 ° |
| Area | * 864.55 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 51.12 ft - (15581 mm) |
| Foot | * 25.18 ft - (7675 mm) |
| Leech | * 44.54 ft - (13576 mm) |
| Percentage LP | * 114.99 % |
| Length Perpendicular | * 21.94 ft - (6687 mm) |
| Deck Angle | * 12.02 ° |
| Area | * 560.76 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
