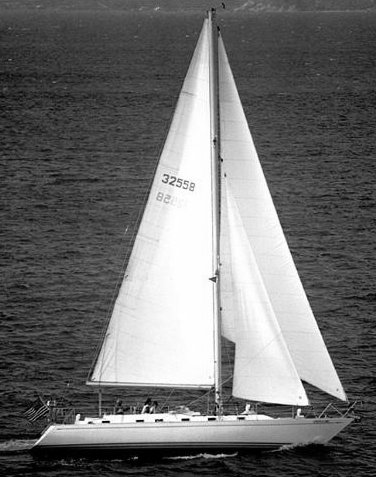

STEVENS 47
Description
The STEVENS 47 is a performance cruiser designed by Sparkman & Stephens. This substantial yacht offers spacious accommodations and excellent seakeeping, Her generous sail plan delivers excellent light-air performance. A true blue water cruiser capable of comfortable ocean passages.
Construction Details
| Designer | Sparkman & Stephens |
|---|---|
| Length | 47.000 ft |
| LOA | 46.830 ft |
| LWL | 37.750 ft |
| Beam | 14.250 ft |
| Displacement | 32000 lb |
| Max Draft | 6.000 ft |
The standard boat dimensions
| i | 60.77 ft |
|---|---|
| j | 19.20 ft |
| p | 53.65 ft |
| e | 18 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 60.77 ft | 19.20 ft | 53.65 ft | 18 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | STAYSAIL |
|---|---|
| Luff | 38 ft - (11582 mm) |
| Foot | 12 ft - (3658 mm) |
| Leech | 31 ft - (9449 mm) |
| Length Perpendicular | * 8.71 ft - (2655 mm) |
| Area | * 165.57 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 56 ft - (17069 mm) |
| Foot | 22.67 ft - (6910 mm) |
| Leech | 52 ft - (15850 mm) |
| Percentage LP | * 109.58 % |
| Length Perpendicular | * 21.04 ft - (6413 mm) |
| Deck Angle | * 4.34 ° |
| Area | * 589.06 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 38 ft - (11582 mm) |
| Foot | 12 ft - (3658 mm) |
| Leech | 31 ft - (9449 mm) |
| Percentage LP | * 45.36 % |
| Length Perpendicular | * 8.71 ft - (2655 mm) |
| Deck Angle | * 25.9 ° |
| Area | * 165.57 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 60.54 ft - (18453 mm) |
| Foot | * 31.68 ft - (9656 mm) |
| Leech | * 55.7 ft - (16977 mm) |
| Perc LP | * 165 |
| Area | * 1438 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 53.65 ft - (16353 mm) |
| Foot | * 18 ft - (5486 mm) |
| Leech-AftHdBd | * 55.72 ft - (16983 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 55.99 ft - (17066 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 494.31 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 60.54 ft - (18453 mm) |
| Foot | * 30.96 ft - (9437 mm) |
| Leech | * 56.99 ft - (17371 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 28.8 ft - (8778 mm) |
| Deck Angle | * 4 ° |
| Area | * 871.76 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 50.98 ft - (15539 mm) |
| Foot | * 25.37 ft - (7733 mm) |
| Leech | * 44.37 ft - (13524 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 22.08 ft - (6730 mm) |
| Deck Angle | * 11.97 ° |
| Area | * 562.82 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
