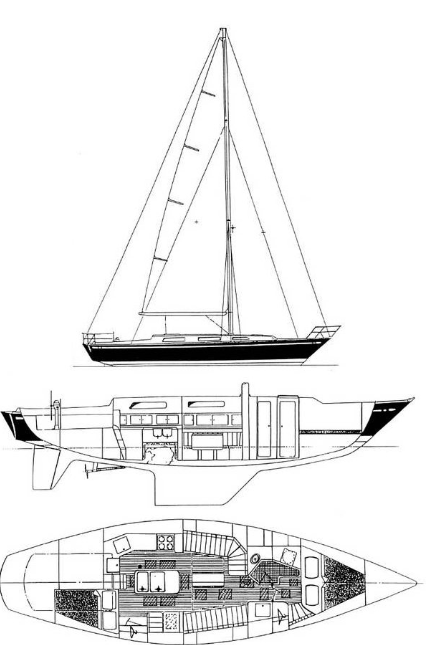

STEVENS 42
Description
The STEVENS 42 is a performance cruiser designed by Sparkman & Stephens. This substantial yacht offers spacious accommodations and excellent seakeeping, with a deep keel providing excellent upwind performance and stability. A true blue water cruiser capable of comfortable ocean passages.
Construction Details
| Designer | Sparkman & Stephens |
|---|---|
| Length | 42.000 ft |
| LOA | 40.580 ft |
| LWL | 31.920 ft |
| Beam | 12.250 ft |
| Displacement | 24000 lb |
| Max Draft | 6.500 ft |
| Min Draft | 4.500 ft |
The standard boat dimensions
| i | 52.90 ft |
|---|---|
| j | 16.40 ft |
| p | 46 ft |
| e | 15.05 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 52.90 ft | 16.40 ft | 46 ft | 15.05 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 52.61 |
| MidGirth | * 29.52 ft - (8998 mm) |
| Foot | * 29.52 ft - (8998 mm) |
| Perc LP | * 180 |
| Area | 1320.09 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 46 ft - (14021 mm) |
| Foot | * 15.05 ft - (4587 mm) |
| Leech-AftHdBd | * 47.75 ft - (14554 mm) |
| Tack Ang | * 88.01 ° |
| Diag (clew/head) | * 47.9 ft - (14600 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | 345.8 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 52.61 ft - (16036 mm) |
| Foot | * 26.39 ft - (8044 mm) |
| Leech | * 49.59 ft - (15115 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 24.6 ft - (7498 mm) |
| Deck Angle | * 4 ° |
| Area | 647.12 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 44.31 ft - (13506 mm) |
| Foot | * 21.61 ft - (6587 mm) |
| Leech | * 38.67 ft - (11787 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 18.86 ft - (5749 mm) |
| Deck Angle | * 12 ° |
| Area | 417.83 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
