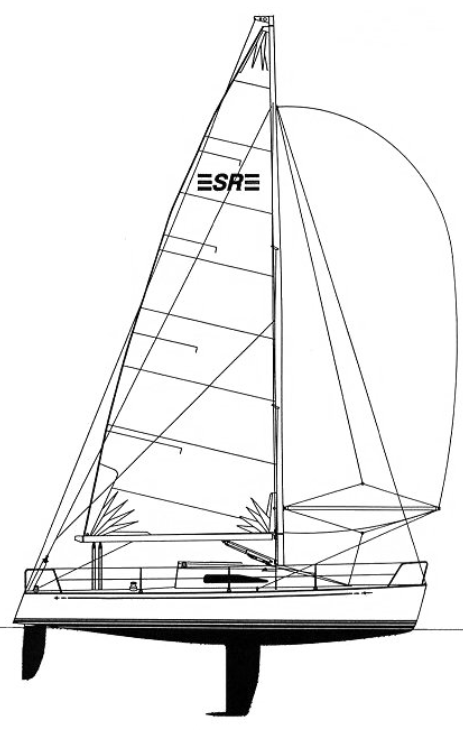

Sr 33
Description
The SR 33 is a mid-sized cruiser designed by Glenn Henderson. This performance-oriented design emphasizes speed and agility, with a deep keel providing excellent upwind performance and stability. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Glenn Henderson |
|---|---|
| Length | 33.000 ft |
| LOA | 33.070 ft |
| LWL | 27.750 ft |
| Beam | 11.420 ft |
| Displacement | 5372 lb |
| Max Draft | 7.000 ft |
| Min Draft | 3.900 ft |
The standard boat dimensions
| i | 38 ft |
|---|---|
| j | 11.50 ft |
| p | 40.75 ft |
| e | 15.62 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 38 ft | 11.50 ft | 40.75 ft | 15.62 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 40.75 ft - (12421 mm) |
| Foot | * 15.62 ft - (4761 mm) |
| Leech-AftHdBd | * 42.85 ft - (13061 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 43.13 ft - (13146 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 326.96 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 31.76 ft - (9680 mm) |
| Foot | * 15.1 ft - (4602 mm) |
| Leech | * 27.83 ft - (8483 mm) |
| Percentage LP | * 115.04 % |
| Length Perpendicular | * 13.23 ft - (4033 mm) |
| Deck Angle | * 11.97 ° |
| Area | * 210.11 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 37.72 ft - (11497 mm) |
| Foot | * 18.46 ft - (5627 mm) |
| Leech | * 35.6 ft - (10851 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 17.25 ft - (5258 mm) |
| Deck Angle | * 4.04 ° |
| Area | * 325.3 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 37.72 ft - (11497 mm) |
| Foot | * 18.97 ft - (5782 mm) |
| Leech | * 34.7 ft - (10577 mm) |
| Perc LP | * 165 % |
| Area | * 537 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 37.72 ft - (11497 mm) |
| MidGirth | * 20.7 ft - (6309 mm) |
| Foot | * 20.7 ft - (6309 mm) |
| Perc LP | * 180 % |
| Area | * 664 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
