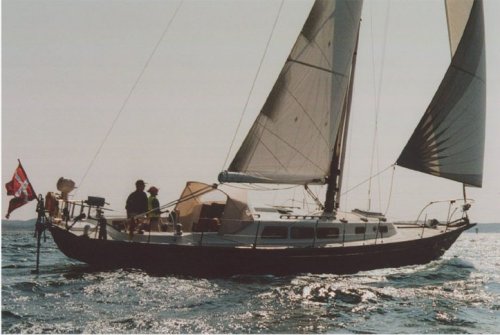

Spencer 44
Description
The Spencer 44 is a mid-sized cruiser designed by John Brandlmayr. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | John Brandlmayr |
|---|---|
| Length | 42.000 ft |
| LOA | 33.750 ft |
| LWL | 27.000 ft |
| Beam | 11.080 ft |
| Displacement | 10000 lb |
| Max Draft | 6.000 ft |
The standard boat dimensions
| i | 50.75 ft |
|---|---|
| j | 17.33 ft |
| p | 44.08 ft |
| e | 17.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 50.75 ft | 17.33 ft | 44.08 ft | 17.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 44.08 ft - (13436 mm) |
| Foot | * 17.5 ft - (5334 mm) |
| Leech-AftHdBd | * 46.58 ft - (14198 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 46.86 ft - (14283 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 395.15 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 42.9 ft - (13076 mm) |
| Foot | * 23.21 ft - (7074 mm) |
| Leech | * 36.86 ft - (11235 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 19.93 ft - (6075 mm) |
| Deck Angle | * 11.97 ° |
| Area | * 427.52 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 50.95 ft - (15530 mm) |
| Foot | * 28.22 ft - (8601 mm) |
| Leech | * 47.69 ft - (14536 mm) |
| Percentage LP | * 150.03 % |
| Length Perpendicular | * 26 ft - (7925 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 662.35 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 50.95 ft - (15530 mm) |
| Foot | * 28.22 ft - (8601 mm) |
| Leech | * 47.69 ft - (14536 mm) |
| Percentage LP | * 150.03 % |
| Length Perpendicular | * 26 ft - (7925 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 662.35 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 52 ft - (15850 mm) |
| Foot | 30 ft - (9144 mm) |
| Leech | 47 ft - (14326 mm) |
| Perc LP | * 165 % |
| Area | * 1170 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 29.5 ft - (8992 mm) |
| Foot | * 13.17 ft - (4014 mm) |
| Leech | * 23.81 ft - (7257 mm) |
| Perc LP | * 60.01 % |
| Length Perp | * 10.4 ft - (3170 mm) |
| Deck Angle | * 19 ° |
| Area | * 153.39 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
