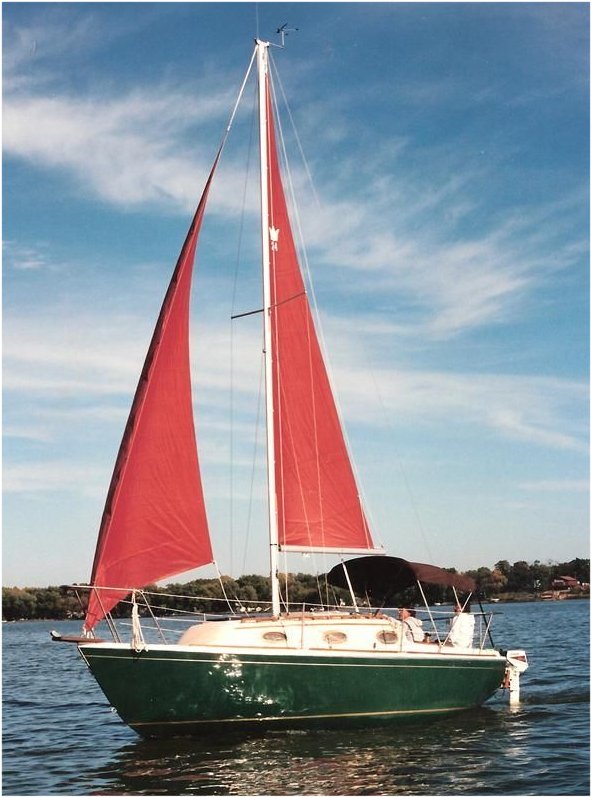

SOVEREIGN 24
Description
The SOVEREIGN 24 is a small sailboat. Her substantial displacement provides a comfortable, sea-kindly motion, Her generous sail plan delivers excellent light-air performance. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 24.000 ft |
| LOA | 24.000 ft |
| LWL | 18.500 ft |
| Beam | 8.000 ft |
| Displacement | 3600 lb |
| Max Draft | 2.580 ft |
The standard boat dimensions
| i | 27.83 ft |
|---|---|
| j | 10.33 ft |
| p | 23.83 ft |
| e | 8.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 27.83 ft | 10.33 ft | 23.83 ft | 8.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 23.75 ft - (7239 mm) |
| Foot | * 14.06 ft - (4285 mm) |
| Leech | * 20.11 ft - (6130 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 11.88 ft - (3621 mm) |
| Deck Angle | * 12 ° |
| Area | 141.05 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 28.2 ft - (8595 mm) |
| MidGirth | * 18.59 ft - (5666 mm) |
| Foot | * 18.59 ft - (5666 mm) |
| Perc LP | * 180 |
| Area | 445.6 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 23.83 ft - (7263 mm) |
| Foot | * 8.5 ft - (2591 mm) |
| Leech-AftHdBd | * 24.91 ft - (7593 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 25.02 ft - (7626 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | 101.16 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 28.2 ft - (8595 mm) |
| Foot | * 17.01 ft - (5185 mm) |
| Leech | * 26.25 ft - (8001 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 15.5 ft - (4724 mm) |
| Deck Angle | * 4 ° |
| Area | 218.51 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
