Sovereign 18
Description
The Sovereign 18 is a dinghy. This pocket cruiser packs surprising capability into a small package, Her generous sail plan delivers excellent light-air performance. Perfect for day sailing, club racing, or teaching young sailors the ropes.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 18.000 ft |
| LOA | 18.000 ft |
| LWL | 14.500 ft |
| Beam | 7.000 ft |
| Displacement | 1350 lb |
| Max Draft | 1.830 ft |

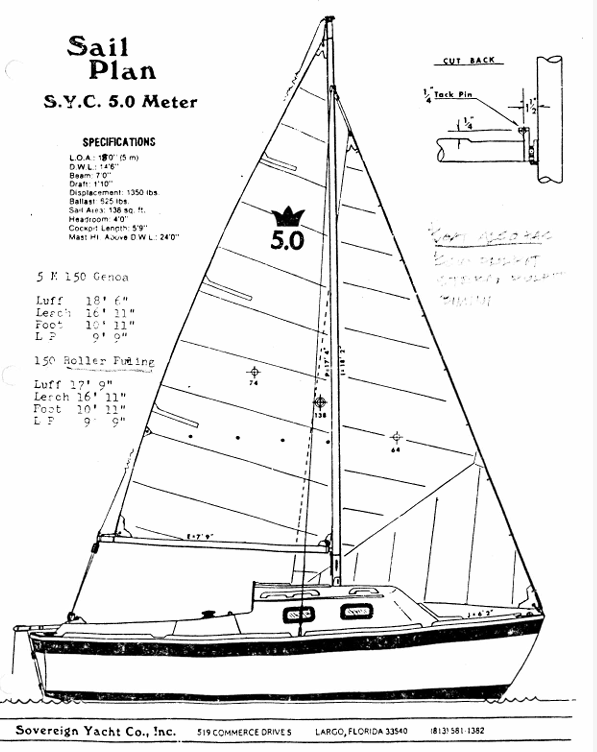

The standard boat dimensions
| i | 18.17 ft |
|---|---|
| j | 6.17 ft |
| p | 17.33 ft |
| e | 7.75 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 18.17 ft | 6.17 ft | 17.33 ft | 7.75 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 17.33 ft - (5282 mm) |
| Foot | * 7.75 ft - (2362 mm) |
| Leech-AftHdBd | * 18.57 ft - (5660 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 18.74 ft - (5712 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 69.32 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 18.23 ft - (5557 mm) |
| Foot | * 10.03 ft - (3057 mm) |
| Leech | * 17.07 ft - (5203 mm) |
| Percentage LP | * 149.99 % |
| Length Perpendicular | * 9.25 ft - (2819 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 84.3 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 15.35 ft - (4679 mm) |
| Foot | * 8.25 ft - (2515 mm) |
| Leech | * 13.2 ft - (4023 mm) |
| Percentage LP | * 114.97 % |
| Length Perpendicular | * 7.09 ft - (2161 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 54.42 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 17.5 ft - (5334 mm) |
| Foot | 5.42 ft - (1652 mm) |
| Leech | 16.083 ft - (4902 mm) |
| Percentage LP | * 80.27 % |
| Length Perpendicular | * 4.95 ft - (1509 mm) |
| Deck Angle | * 5.19 ° |
| Area | * 43.35 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 19 ft - (5791 mm) |
| Foot | 11 ft - (3353 mm) |
| Leech | 17 ft - (5182 mm) |
| Perc LP | * 165 |
| Area | * 157 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
