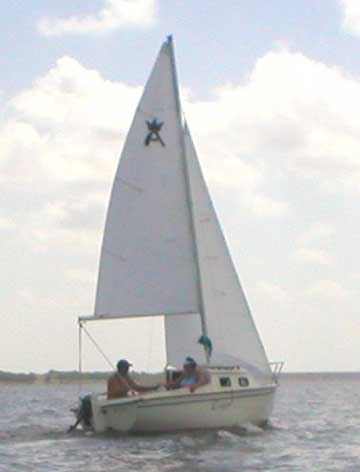

Sovereign 17
Description
The Sovereign 17 is a dinghy. This pocket cruiser packs surprising capability into a small package, Her generous sail plan delivers excellent light-air performance. Perfect for day sailing, club racing, or teaching young sailors the ropes.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 17.000 ft |
| LOA | 17.000 ft |
| LWL | 14.500 ft |
| Beam | 7.000 ft |
| Displacement | 1350 lb |
| Max Draft | 1.830 ft |
The standard boat dimensions
| i | 17.33 ft |
|---|---|
| j | 6.16 ft |
| p | 16.16 ft |
| e | 7.75 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 17.33 ft | 6.16 ft | 16.16 ft | 7.75 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 16.16 ft - (4926 mm) |
| Foot | * 7.75 ft - (2362 mm) |
| Leech-AftHdBd | * 17.51 ft - (5337 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 17.68 ft - (5389 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 64.66 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 14.71 ft - (4484 mm) |
| Foot | * 8.31 ft - (2533 mm) |
| Leech | * 12.55 ft - (3825 mm) |
| Percentage LP | * 114.94 % |
| Length Perpendicular | * 7.08 ft - (2158 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 52.08 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 17.47 ft - (5325 mm) |
| Foot | * 10.08 ft - (3072 mm) |
| Leech | * 16.31 ft - (4971 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 9.24 ft - (2816 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 80.71 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 17.47 ft - (5325 mm) |
| Foot | * 10.16 ft - (3097 mm) |
| Leech | * 16.07 ft - (4898 mm) |
| Perc LP | * 165 |
| Area | * 133 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 15 ft - (4572 mm) |
| Foot | 5.83 ft - (1777 mm) |
| Leech | 13 ft - (3962 mm) |
| Percentage LP | * 81.17 % |
| Length Perpendicular | * 5 ft - (1524 mm) |
| Deck Angle | * 11.4 ° |
| Area | * 37.49 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
