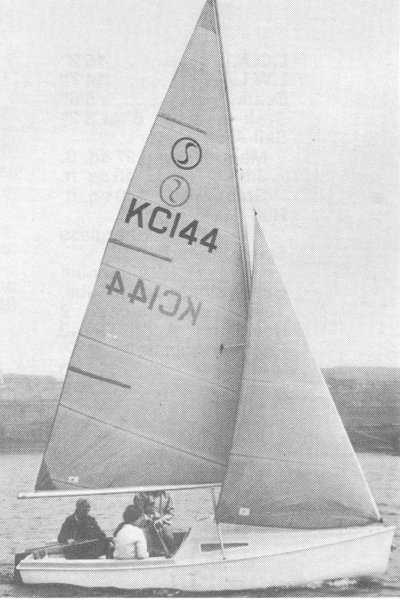

Sirocco 15
Description
15' Micro Cruiser with very small cabin. Swing Keel made of Iron. Claimed displ is 470#.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 15.400 ft |
| LOA | 15.330 ft |
| LWL | 14.250 ft |
| Beam | 5.920 ft |
| Displacement | 470 lb |
| Max Draft | 3.830 ft |
| Min Draft | 0.670 ft |
The standard boat dimensions
| i | 14.75 ft |
|---|---|
| j | 4.33 ft |
| p | 20.08 ft |
| e | 9.66 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 14.75 ft | 4.33 ft | 20.08 ft | 9.66 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 20.08 ft - (6120 mm) |
| Foot | * 9.66 ft - (2944 mm) |
| Leech-AftHdBd | * 21.76 ft - (6632 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 21.98 ft - (6700 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 100.25 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | 15 ft - (4572 mm) |
| Foot | 8.33 ft - (2539 mm) |
| Leech | 14.25 ft - (4343 mm) |
| Perc LP | * 178.98 |
| Length Perp | * 7.75 |
| Deck Angle | * 5.08 ° |
| Area | * 58.15 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 13 ft - (3962 mm) |
| Foot | 6.75 ft - (2057 mm) |
| Leech | 12 ft - (3658 mm) |
| Percentage LP | * 142.73 % |
| Length Perpendicular | * 6.18 ft - (1884 mm) |
| Deck Angle | * 7.35 ° |
| Area | * 40.17 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 14.6 ft - (4450 mm) |
| MidGirth | * 7.79 ft - (2374 mm) |
| Foot | * 7.79 ft - (2374 mm) |
| Perc LP | * 180 |
| Area | * 97 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 14.5 ft - (4420 mm) |
| Foot | 6 ft - (1829 mm) |
| Leech | 13.67 ft - (4167 mm) |
| Percentage LP | * 130.25 % |
| Length Perpendicular | * 5.64 ft - (1719 mm) |
| Deck Angle | * 3.59 ° |
| Area | * 40.89 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 14.75 ft - (4496 mm) |
| Foot | 10 ft - (3048 mm) |
| Leech | 13.75 ft - (4191 mm) |
| Perc LP | * 165 |
| Area | * 111 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
