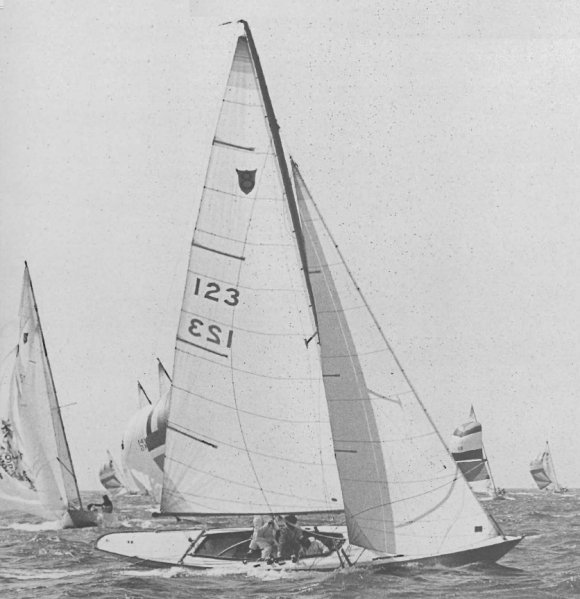

Shields
Description
Shields Class One Design Wt: 4672 lbs
Construction Details
| Designer | Sparkman & Stephens |
|---|---|
| Length | 30.000 ft |
| LOA | 30.210 ft |
| LWL | 20.000 ft |
| Beam | 6.420 ft |
| Displacement | 4600 lb |
| Max Draft | 4.750 ft |
The standard boat dimensions
| i | 29.80 ft |
|---|---|
| j | 9.30 ft |
| p | 33.30 ft |
| e | 13.30 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 29.80 ft | 9.30 ft | 33.30 ft | 13.30 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | 28.33 ft - (8635 mm) |
| Foot | 10.167 ft - (3099 mm) |
| Leech | 26.83 ft - (8178 mm) |
| Percentage LP | * 103.44 % |
| Length Perpendicular | * 9.62 ft - (2932 mm) |
| Deck Angle | * 1.52 ° |
| Area | * 136.29 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 33.3 ft - (10150 mm) |
| Foot | * 13.3 ft - (4054 mm) |
| Leech-AftHdBd | * 35.14 ft - (10711 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 35.42 ft - (10796 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 228.62 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 29.66 ft - (9040 mm) |
| Foot | * 15.34 ft - (4676 mm) |
| Leech | * 27.29 ft - (8318 mm) |
| Perc LP | * 165 |
| Area | * 341 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 29.66 ft - (9040 mm) |
| Foot | * 15.57 ft - (4746 mm) |
| Leech | * 26.68 ft - (8132 mm) |
| Perc LP | * 150 |
| Length Perp | * 13.95 |
| Deck Angle | * 9.04 ° |
| Area | * 206.87 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 29.66 ft - (9040 mm) |
| Foot | * 14.98 ft - (4566 mm) |
| Leech | * 27.93 ft - (8513 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 13.95 ft - (4252 mm) |
| Deck Angle | * 4.05 ° |
| Area | * 206.86 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 29.66 |
| MidGirth | * 16.74 ft - (5102 mm) |
| Foot | * 16.74 ft - (5102 mm) |
| Perc LP | * 180 |
| Area | * 422 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 17.17 ft - (5233 mm) |
| Foot | * 6.93 ft - (2112 mm) |
| Leech | * 14.2 ft - (4328 mm) |
| Perc LP | * 60 |
| Length Perp | * 5.58 |
| Deck Angle | * 19.06 ° |
| Area | * 47.89 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
