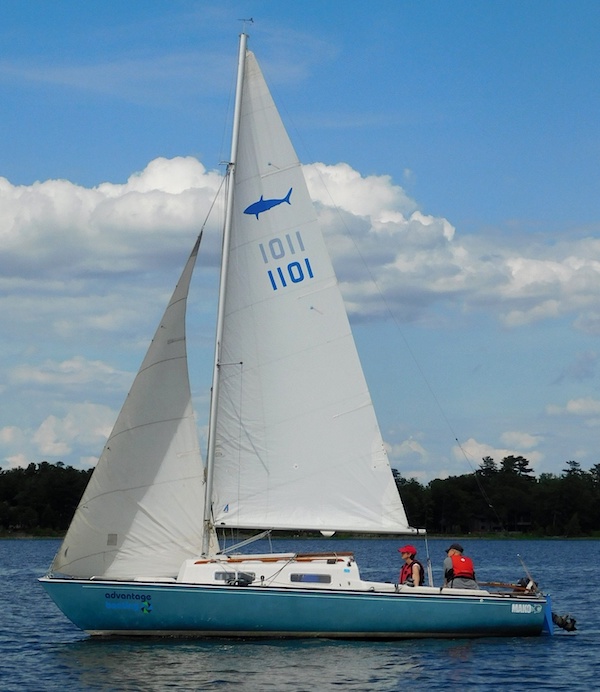

Shark 24
Description
The SHARK 24 is a small sailboat designed by George Hinterhoeller. With her light displacement hull, she offers spirited performance. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | George Hinterhoeller |
|---|---|
| Length | 24.000 ft |
| LOA | 24.000 ft |
| LWL | 20.000 ft |
| Beam | 6.830 ft |
| Displacement | 2200 lb |
| Max Draft | 3.160 ft |
The standard boat dimensions
| i | 20 ft |
|---|---|
| j | 7.50 ft |
| p | 23 ft |
| e | 10.16 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 20 ft | 7.50 ft | 23 ft | 10.16 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 23 ft - (7010 mm) |
| Foot | * 10.16 ft - (3097 mm) |
| Leech-AftHdBd | * 24.67 ft - (7519 mm) |
| Tack Ang | * 88.01 ° |
| Diag (clew/head) | * 24.82 ft - (7565 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | 116.69 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 17.09 ft - (5209 mm) |
| Foot | * 10.23 ft - (3118 mm) |
| Leech | * 14.44 ft - (4401 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 8.63 ft - (2630 mm) |
| Deck Angle | * 12 ° |
| Area | 73.67 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 20.29 ft - (6184 mm) |
| Foot | * 12.37 ft - (3770 mm) |
| Leech | * 18.87 ft - (5752 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 11.25 ft - (3429 mm) |
| Deck Angle | * 4 ° |
| Area | 114.14 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 20.29 ft - (6184 mm) |
| MidGirth | * 13.5 ft - (4115 mm) |
| Foot | * 13.5 ft - (4115 mm) |
| Perc LP | * 180 % |
| Area | 232.83 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
