Selway Fisher Surf 8
Description

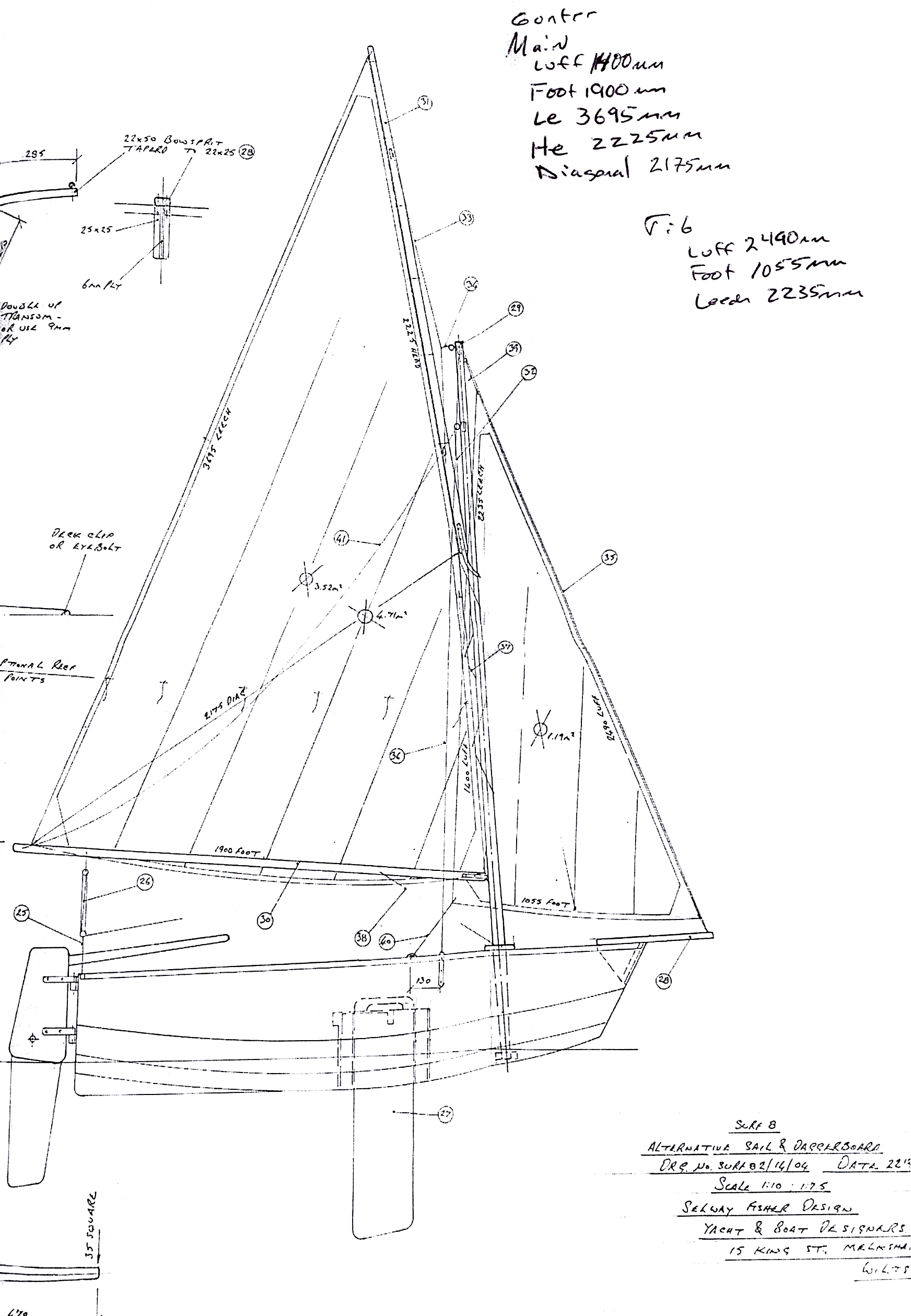

The Selway Fisher Surf 8 is a sailboat designed by Selway Fisher Design.
Custom sail calculations are not possible for this boat as no I, J, P and E dimensions are available.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | JIBSAIL |
|---|---|
| Luff | 8.169 ft - (2490 mm) |
| Foot | 3.461 ft - (1055 mm) |
| Leech | 7.333 ft - (2235 mm) |
| Area | * 12.69 ft² |
| Sail Type | GUNTER |
|---|---|
| Luff | 4.593 ft - (1400 mm) |
| Foot | 6.234 ft - (1900 mm) |
| Leech | 12.123 ft - (3695 mm) |
| Tack Angle | * 80.92 ° |
| Diag (clew/throat) | 7.136 ft - (2175 mm) |
| Head | 7.3 ft - (2225 mm) |
| Area | * 36.12 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
