SEARUNNER 31 TRI
Description
The SEARUNNER 31 TRI is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 31.000 ft |

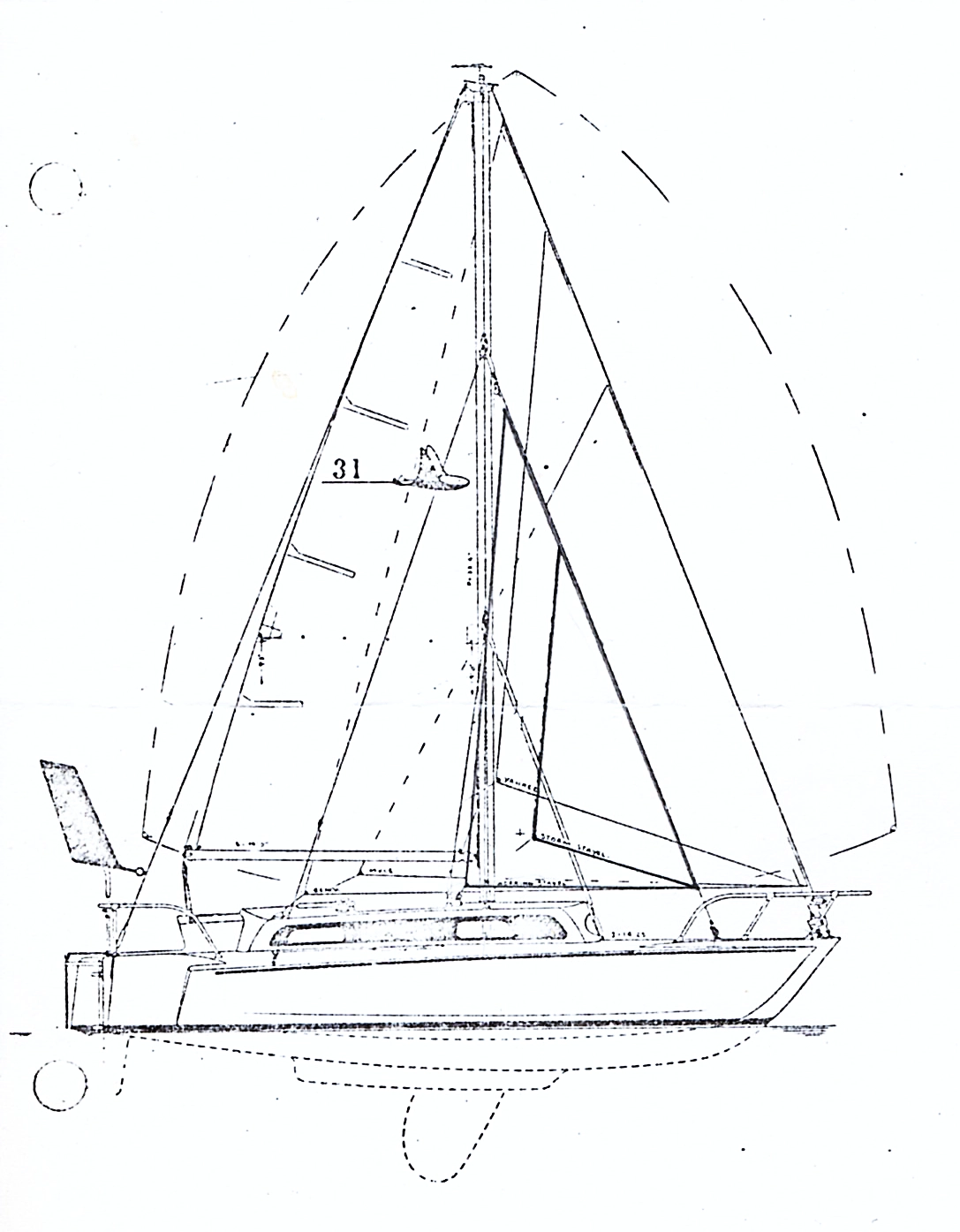

The standard boat dimensions
| i | 35.50 ft |
|---|---|
| j | 14.25 ft |
| p | 32.50 ft |
| e | 12 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 35.50 ft | 14.25 ft | 32.50 ft | 12 ft | - | - |

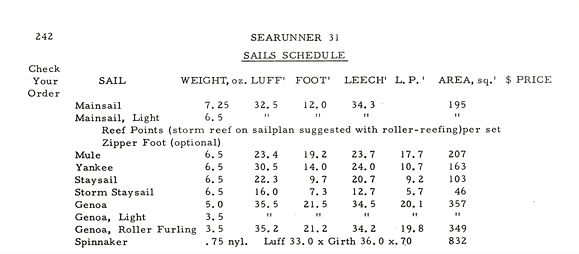

Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | STAYSAIL |
|---|---|
| Luff | 22.3 ft - (6797 mm) |
| Foot | 9.7 ft - (2957 mm) |
| Leech | 20 ft - (6096 mm) |
| Length Perpendicular | 8.7 ft - (2652 mm) |
| Area | * 97 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 32.5 ft - (9906 mm) |
| Foot | 12 ft - (3658 mm) |
| Leech-AftHdBd | * 34.01 ft - (10366 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 34.25 ft - (10439 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 201.12 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 35.5 ft - (10820 mm) |
| Foot | 21.5 ft - (6553 mm) |
| Leech | 34.5 ft - (10516 mm) |
| Percentage LP | * 141.4 % |
| Length Perpendicular | * 20.15 ft - (6142 mm) |
| Deck Angle | * -1.46 ° |
| Area | * 357.68 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 23.4 ft - (7132 mm) |
| Foot | 19.2 ft - (5852 mm) |
| Leech | 23.7 ft - (7224 mm) |
| Percentage LP | * 123.79 % |
| Length Perpendicular | * 17.64 ft - (5377 mm) |
| Deck Angle | * 1.37 ° |
| Area | * 206.42 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 37 ft - (11278 mm) |
| Foot | 24 ft - (7315 mm) |
| Leech | 35 ft - (10668 mm) |
| Perc LP | * 165 |
| Area | * 666 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
