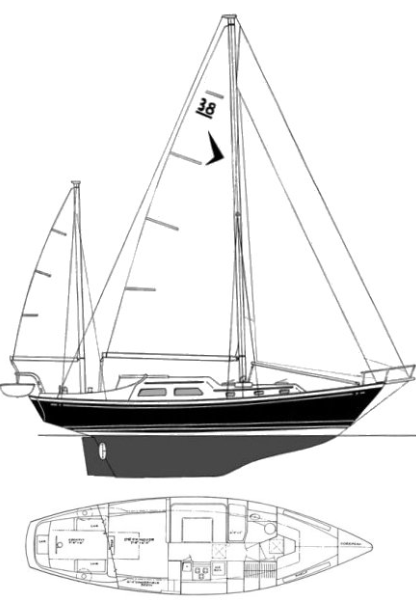

SEAFARER 38 KETCH
Description
The SEAFARER 38 KETCH is a cruising yacht designed by Philip Rhodes. Built for serious cruising, she offers reassuring stability in all conditions, Her generous sail plan delivers excellent light-air performance. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | Philip Rhodes |
|---|---|
| Length | 38.000 ft |
| LOA | 37.750 ft |
| LWL | 27.250 ft |
| Beam | 10.500 ft |
| Displacement | 16500 lb |
| Max Draft | 4.500 ft |
The standard boat dimensions
| i | 40.75 ft |
|---|---|
| j | 17.16 ft |
| p | 35.16 ft |
| e | 14 ft |
| p2 | 18 ft |
| e2 | 7 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 40.75 ft | 17.16 ft | 35.16 ft | 14 ft | 18 ft | 7 ft |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | * 42 ft - (12802 mm) |
| Foot | * 28.85 ft - (8793 mm) |
| Leech | * 38.75 ft - (11811 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 25.74 ft - (7846 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 540.51 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | * 18 ft - (5486 mm) |
| Foot | * 7 ft - (2134 mm) |
| Leech-AftHdBd | * 18.9 ft - (5761 mm) |
| Tack Ang | * 88.05 ° |
| Diag (clew/head) | * 19.09 ft - (5819 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 65.06 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 35.16 ft - (10717 mm) |
| Foot | * 14 ft - (4267 mm) |
| Leech-AftHdBd | * 37.11 ft - (11311 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 37.39 ft - (11396 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 253.69 ft² |
| Sail Type | YANKEE |
|---|---|
| Luff | 40.5 ft - (12344 mm) |
| Foot | 20 ft - (6096 mm) |
| Leech | 30 ft - (9144 mm) |
| Percentage LP | * 82.81 % |
| Length Perpendicular | * 14.21 ft - (4331 mm) |
| Deck Angle | * 21.9 ° |
| Area | * 287.69 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 43 ft - (13106 mm) |
| Foot | 30 ft - (9144 mm) |
| Leech | 40 ft - (12192 mm) |
| Perc LP | * 165 |
| Area | * 968 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 35.37 ft - (10781 mm) |
| Foot | * 24.04 ft - (7327 mm) |
| Leech | * 29.28 ft - (8925 mm) |
| Percentage LP | * 114.98 % |
| Length Perpendicular | * 19.73 ft - (6014 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 348.92 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
