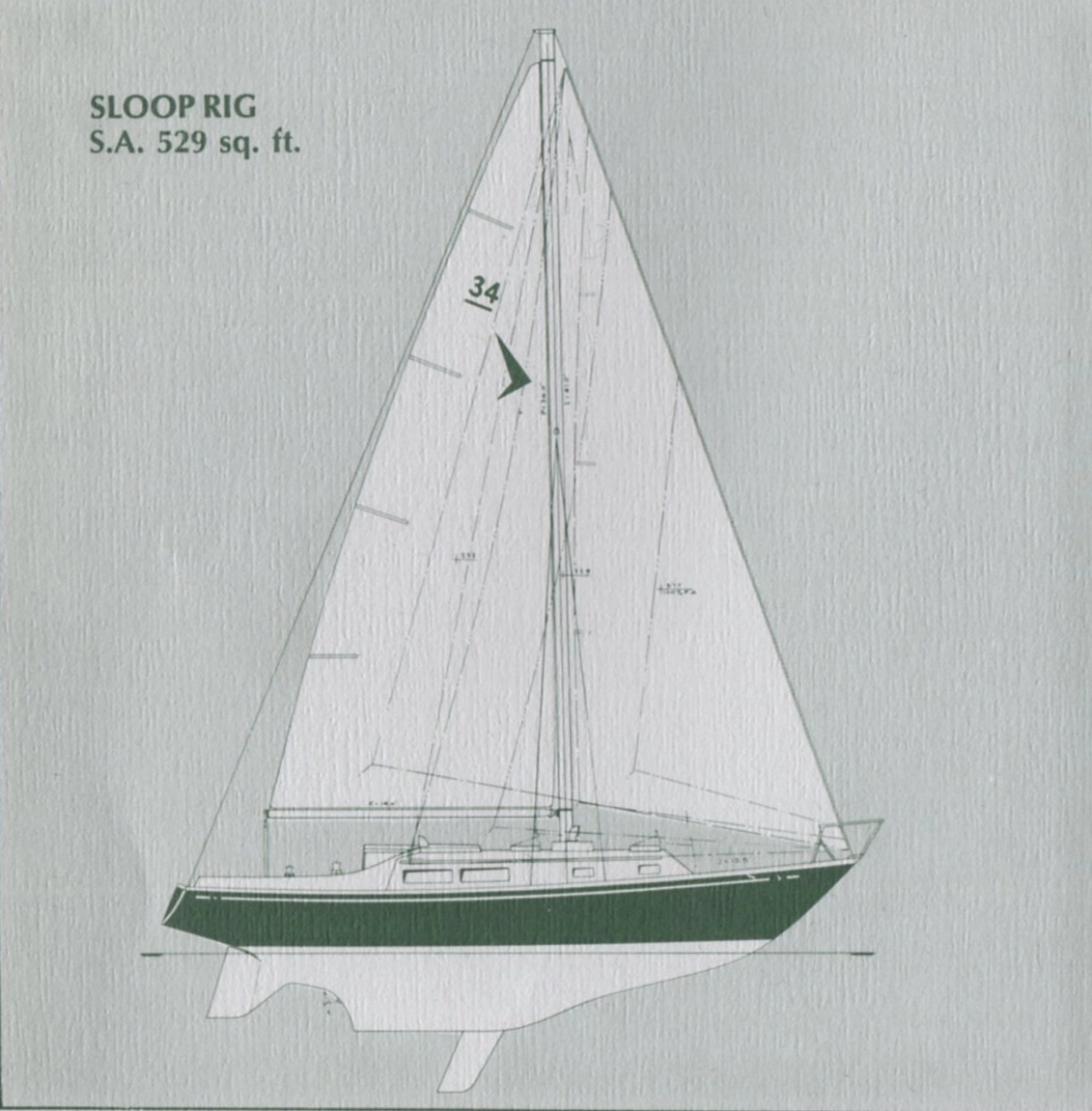

SEAFARER 34 SLOOP
Description
The SEAFARER 34 SLOOP is a cruising yacht. Built for serious cruising, she offers reassuring stability in all conditions, Her generous sail plan delivers excellent light-air performance. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 34.000 ft |
| LOA | 36.330 ft |
| LWL | 26.250 ft |
| Beam | 10.500 ft |
| Displacement | 16350 lb |
| Max Draft | 4.500 ft |
The standard boat dimensions
| i | 41 ft |
|---|---|
| j | 13.50 ft |
| p | 36 ft |
| e | 14 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 41 ft | 13.50 ft | 36 ft | 14 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 36 ft - (10973 mm) |
| Foot | * 14 ft - (4267 mm) |
| Leech-AftHdBd | * 37.99 ft - (11579 mm) |
| Tack Ang | * 88.01 ° |
| Diag (clew/head) | * 38.17 ft - (11634 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | 251.71 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 41.01 ft - (12500 mm) |
| Foot | * 21.88 ft - (6669 mm) |
| Leech | * 38.49 ft - (11732 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 20.25 ft - (6172 mm) |
| Deck Angle | * 4 ° |
| Area | 415.29 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 34.53 ft - (10525 mm) |
| Foot | * 17.97 ft - (5477 mm) |
| Leech | * 29.84 ft - (9095 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 15.53 ft - (4734 mm) |
| Deck Angle | * 12 ° |
| Area | 268.06 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 41.01 ft - (12500 mm) |
| MidGirth | * 24.3 ft - (7407 mm) |
| Foot | * 24.3 ft - (7407 mm) |
| Perc LP | * 180 |
| Area | 847.06 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
