Seafarer 23
Description
The Seafarer 23 is a small sailboat. Her substantial displacement provides a comfortable, sea-kindly motion, Her generous sail plan delivers excellent light-air performance. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 23.000 ft |
| LOA | 23.080 ft |
| LWL | 17.920 ft |
| Beam | 7.170 ft |
| Displacement | 3500 lb |
| Max Draft | 3.250 ft |

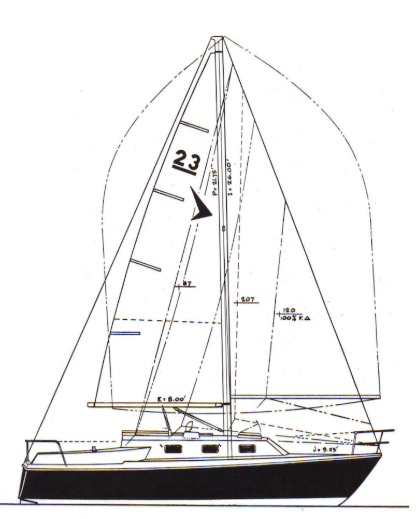

The standard boat dimensions
| i | 26.90 ft |
|---|---|
| j | 7.60 ft |
| p | 23 ft |
| e | 11 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 26.90 ft | 7.60 ft | 23 ft | 11 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 23 ft - (7010 mm) |
| Foot | * 11 ft - (3353 mm) |
| Leech-AftHdBd | * 24.9 ft - (7590 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 25.15 ft - (7666 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 130.91 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 26.56 ft - (8095 mm) |
| Foot | * 12.11 ft - (3691 mm) |
| Leech | * 25.2 ft - (7681 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 11.4 ft - (3475 mm) |
| Deck Angle | * 3.94 ° |
| Area | * 151.39 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 22.36 ft - (6815 mm) |
| Foot | * 9.88 ft - (3011 mm) |
| Leech | * 19.79 ft - (6032 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 8.74 ft - (2664 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 97.73 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 27 ft - (8230 mm) |
| Foot | 13 ft - (3962 mm) |
| Leech | 24.5 ft - (7468 mm) |
| Perc LP | * 165 |
| Area | * 263 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 24 ft - (7315 mm) |
| Foot | 9.25 ft - (2819 mm) |
| Leech | 21.75 ft - (6629 mm) |
| Percentage LP | * 110.13 % |
| Length Perpendicular | * 8.37 ft - (2551 mm) |
| Deck Angle | * 9.35 ° |
| Area | * 100.5 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
