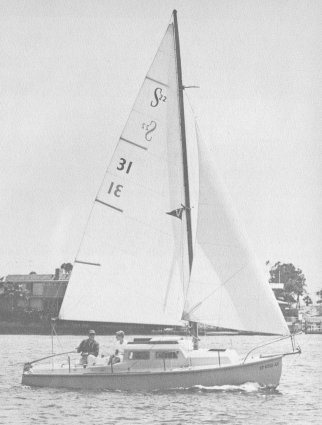

Schock 23
Description
The SCHOCK 23 is a small sailboat designed by Shad Turner. With her light displacement hull, she offers spirited performance, featuring variable draft for versatility in different sailing conditions. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | Shad Turner |
|---|---|
| Length | 23.000 ft |
| LOA | 22.000 ft |
| LWL | 20.000 ft |
| Beam | 7.500 ft |
| Displacement | 2100 lb |
| Max Draft | 4.170 ft |
| Min Draft | 2.170 ft |
The standard boat dimensions
| i | 29.50 ft |
|---|---|
| j | 10 ft |
| p | 26.50 ft |
| e | 9 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 29.50 ft | 10 ft | 26.50 ft | 9 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 26.5 ft - (8077 mm) |
| Foot | * 9 ft - (2743 mm) |
| Leech-AftHdBd | * 27.51 ft - (8385 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 27.69 ft - (8440 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 123.05 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 24.92 ft - (7596 mm) |
| Foot | * 13.38 ft - (4078 mm) |
| Leech | * 21.43 ft - (6532 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 11.5 ft - (3505 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 143.3 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 29.59 ft - (9019 mm) |
| Foot | * 16.26 ft - (4956 mm) |
| Leech | * 27.72 ft - (8449 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 15 ft - (4572 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 221.91 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 29.59 ft - (9019 mm) |
| Foot | * 16.5 ft - (5029 mm) |
| Leech | * 27.22 ft - (8297 mm) |
| Perc LP | * 165 % |
| Area | * 366 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 29.59 ft - (9019 mm) |
| MidGirth | * 18 ft - (5486 mm) |
| Foot | * 18 ft - (5486 mm) |
| Perc LP | * 180 % |
| Area | * 453 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
