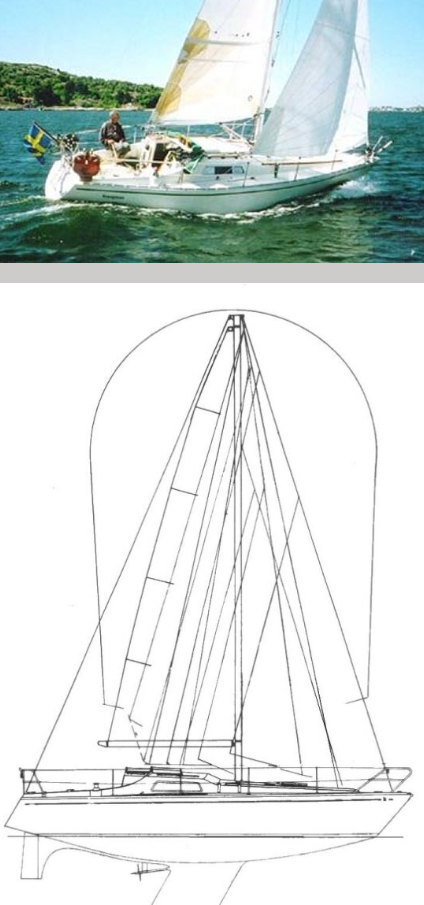

Scampi30 Tall Rig
Description
The Scampi 30 Tall Rig (also referred to as the "tall mast" or "twin spreader tall rig" variant in some markets) is an enhanced performance configuration of the classic Swedish Scampi 30 cruiser-racer, designed by Peter Norlin and built primarily during the 1970s–early 1980s. While the standard Scampi 30 used a conservative masthead sloop rig with a single set of unswept spreaders (often described as conservatively canvassed for balanced cruising/racing), the tall rig option—more common in certain production runs (e.g., later Mk III/IV models, Albin Marine versions, or the related Yamaha 30 tall rig equivalent)—featured a taller mast (adding roughly 2–3 feet in height), twin/double spreaders for better support, and increased sail area (typically +35–50 sq ft) to boost light-air performance, upwind speed, and overall power while maintaining the boat's excellent IOR Half Ton heritage. This "rating bandit" setup made it particularly competitive in variable wind conditions (e.g., Great Lakes or coastal fleets), improving the SA/D ratio to around 19–20 (vs. ~16–18 for standard) and often yielding better PHRF handicaps (~135–150 vs. 162–192 standard), though it could increase weather helm if not tuned properly. Production was limited for the tall rig (estimates suggest 30–50% of total ~1,000 Scampi hulls, with more Yamaha 30 variants adopting it), and it's prized today by vintage racers for its speed edge without sacrificing the boat's forgiving handling, solid fiberglass build, and family-friendly interior.
Construction Details
| Designer | Peter Norlin |
|---|---|
| Builder | Albin Marine |
| Length | 29.750 ft |
| LOA | 29.750 ft |
| LWL | 23.000 ft |
| Beam | 9.833 ft |
| Displacement | 8000 lb |
| Ballast | 3800 lb |
| Max Draft | 5.500 ft |
| Year Built | 1970 |
The standard boat dimensions
| i | 35.75 ft |
|---|---|
| j | 12.25 ft |
| p | 30.50 ft |
| e | 10.25 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 35.75 ft | 12.25 ft | 30.50 ft | 10.25 ft | - | - | - | - |
Sails
Scampi30 Tall Rig - MAINSAIL
| Luff | * 30.5 ft - (9296 mm) |
|---|---|
| Foot | * 10.25 ft - (3124 mm) |
| Leech | * 31.72 ft - (9668 mm) |
| Tack Angle | * 88.03 ° |
| Diagonal | * 31.84 ft - (9705 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | 156.14 ft² |
| Edit in Calculator | |
Scampi30 Tall Rig - JIBSAIL
| Luff | * 30.23 ft - (9214 mm) |
|---|---|
| Foot | * 16.42 ft - (5005 mm) |
| Leech | * 25.95 ft - (7910 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 14.09 ft - (4295 mm) |
| Deck Angle | * 12 ° |
| Area | 212.92 ft² |
| Edit in Calculator | |
Scampi30 Tall Rig - GENOA
| Luff | * 35.9 ft - (10942 mm) |
|---|---|
| Foot | * 19.95 ft - (6081 mm) |
| Leech | * 33.6 ft - (10241 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18.38 ft - (5602 mm) |
| Deck Angle | * 4 ° |
| Area | 329.83 ft² |
| Edit in Calculator | |
Scampi30 Tall Rig - SPINNAKER
| Stays | * 35.9 ft - (10942 mm) |
|---|---|
| MidGirth | * 22.05 ft - (6721 mm) |
| Foot | * 22.05 ft - (6721 mm) |
| Perc LP | * 180 % |
| Area | 672.86 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
