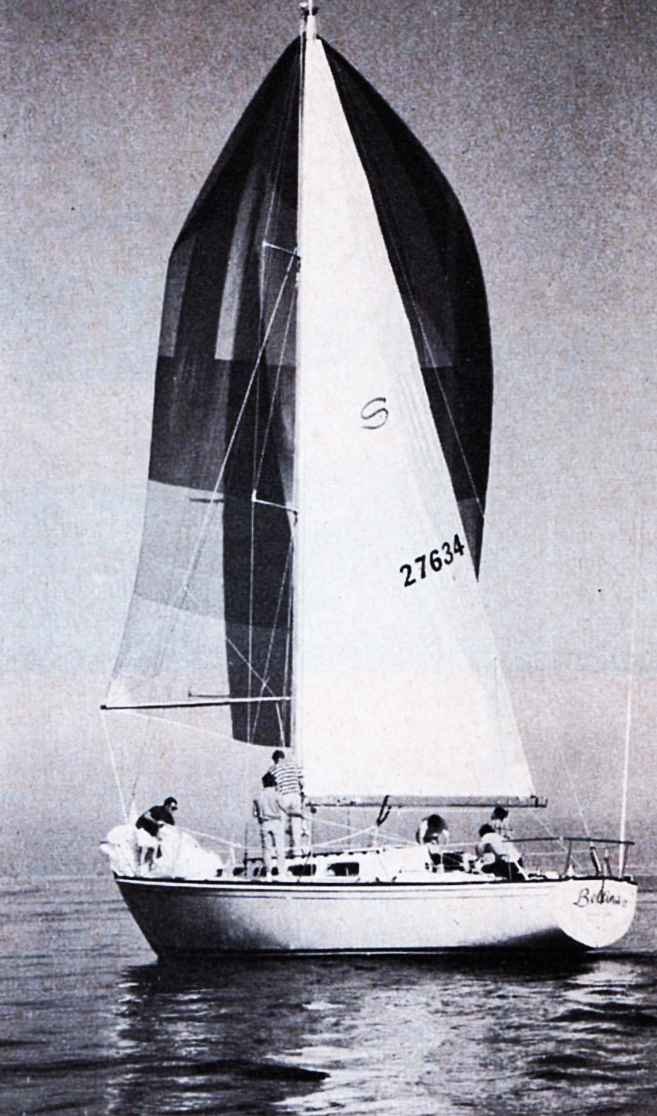

Santana 37
Description
15000 lbs. Disp. 6600 lbs. Ballast 30' LWL 11'8" Beam 5'7" Draft
Construction Details
| Designer | Mull, Gary |
|---|---|
| Length | 37.670 ft |
| LOA | 37.670 ft |
| LWL | 30.000 ft |
| Beam | 11.670 ft |
| Displacement | 15000 lb |
| Max Draft | 5.580 ft |
The standard boat dimensions
| i | 50 ft |
|---|---|
| j | 15.63 ft |
| p | 44 ft |
| e | 15.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 50 ft | 15.63 ft | 44 ft | 15.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 49.77 ft - (15170 mm) |
| Foot | * 25.79 ft - (7861 mm) |
| Leech | * 45.79 ft - (13957 mm) |
| Perc LP | * 165 |
| Area | * 963 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 49.77 ft - (15170 mm) |
| Foot | * 26.16 ft - (7974 mm) |
| Leech | * 44.78 ft - (13649 mm) |
| Perc LP | * 149.97 |
| Length Perp | * 23.44 |
| Deck Angle | * 9 ° |
| Area | * 583.31 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 49.77 ft - (15170 mm) |
| Foot | * 25.17 ft - (7672 mm) |
| Leech | * 46.88 ft - (14289 mm) |
| Percentage LP | * 149.97 % |
| Length Perpendicular | * 23.44 ft - (7145 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 583.3 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 41.91 ft - (12774 mm) |
| Foot | * 20.62 ft - (6285 mm) |
| Leech | * 36.52 ft - (11131 mm) |
| Percentage LP | * 114.97 % |
| Length Perpendicular | * 17.97 ft - (5477 mm) |
| Deck Angle | * 12.02 ° |
| Area | * 376.52 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 44 ft - (13411 mm) |
| Foot | * 15.5 ft - (4724 mm) |
| Leech-AftHdBd | * 45.86 ft - (13978 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 46.14 ft - (14063 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 350.32 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 49.77 |
| MidGirth | * 28.13 ft - (8574 mm) |
| Foot | * 28.13 ft - (8574 mm) |
| Perc LP | * 180 |
| Area | * 1190 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 28.81 ft - (8781 mm) |
| Foot | * 11.65 ft - (3551 mm) |
| Leech | * 23.82 ft - (7260 mm) |
| Perc LP | * 60.01 |
| Length Perp | * 9.38 |
| Deck Angle | * 19.04 ° |
| Area | * 135.08 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
