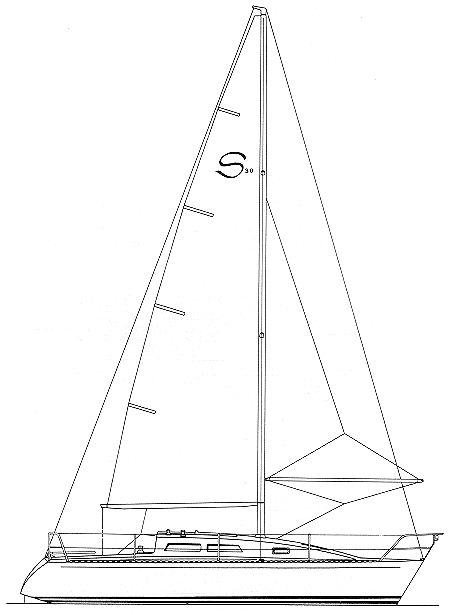

SANTANA 30/30
Description
6000 lbs. Disp. 2435 lbs. Ballast 25'5" LWL 10'3" Beam 5'6" Draft
Construction Details
| Designer | Nelson/Marek |
|---|---|
| Length | 29.920 ft |
| LOA | 29.920 ft |
| LWL | 25.420 ft |
| Beam | 10.250 ft |
| Displacement | 6000 lb |
| Max Draft | 5.500 ft |
The standard boat dimensions
| i | 40.80 ft |
|---|---|
| j | 11.70 ft |
| p | 36.20 ft |
| e | 11.10 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 40.80 ft | 11.70 ft | 36.20 ft | 11.10 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 40.32 ft - (12290 mm) |
| MidGirth | * 21.06 ft - (6419 mm) |
| Foot | * 21.06 ft - (6419 mm) |
| Perc LP | * 180 |
| Area | * 722 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 40.32 ft - (12290 mm) |
| Foot | * 19.3 ft - (5883 mm) |
| Leech | * 37.09 ft - (11305 mm) |
| Perc LP | * 165 |
| Area | * 584 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 40.32 ft - (12290 mm) |
| Foot | * 19.36 ft - (5901 mm) |
| Leech | * 36.63 ft - (11165 mm) |
| Perc LP | * 150 |
| Length Perp | * 17.55 |
| Deck Angle | * 8.96 ° |
| Area | * 353.85 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 36.2 ft - (11034 mm) |
| Foot | * 11.1 ft - (3383 mm) |
| Leech-AftHdBd | * 37.25 ft - (11354 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 37.49 ft - (11427 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 207.62 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 40.32 ft - (12290 mm) |
| Foot | * 18.68 ft - (5694 mm) |
| Leech | * 38.19 ft - (11640 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 17.55 ft - (5349 mm) |
| Deck Angle | * 4.04 ° |
| Area | * 353.79 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 33.96 ft - (10351 mm) |
| Foot | * 15.24 ft - (4645 mm) |
| Leech | * 30 ft - (9144 mm) |
| Percentage LP | * 115.04 % |
| Length Perpendicular | * 13.46 ft - (4103 mm) |
| Deck Angle | * 11.97 ° |
| Area | * 228.54 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
