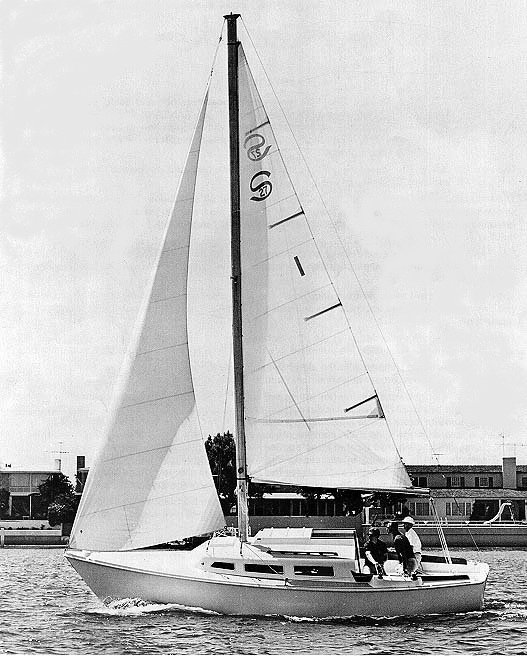

Santana 27
Description
5000 lbs. Disp. 2300 lbs. Ballast 22'6" LWL 9' Beam 4'3" Draft
Construction Details
Designer | Mull, Gary |
---|---|
Length | 27.000 ft |
LOA | 27.040 ft |
LWL | 22.500 ft |
Beam | 9.000 ft |
Displacement | 5000 lb |
Max Draft | 4.250 ft |
The standard boat dimensions
i | 33.75 ft |
---|---|
j | 11.25 ft |
p | 27.50 ft |
e | 11.50 ft |
p2 | - |
e2 | - |
I | J | P | E | P2 | E2 |
---|---|---|---|---|---|
33.75 ft | 11.25 ft | 27.50 ft | 11.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
Sail Type | ASYMMETRICAL |
---|---|
Luff | 34 ft - (10363 mm) |
Foot | 19 ft - (5791 mm) |
Leech | 31 ft - (9449 mm) |
Perc LP | * 165 |
Area | * 484 ft² |
Sail Type | DRIFTER |
---|---|
Luff | * 33.8 ft - (10302 mm) |
Foot | * 19.02 ft - (5797 mm) |
Leech | * 30.19 ft - (9202 mm) |
Perc LP | * 150.04 |
Length Perp | * 16.88 |
Deck Angle | * 9.02 ° |
Area | * 285.24 ft² |
Sail Type | GENOA |
---|---|
Luff | 33 ft - (10058 mm) |
Foot | 15.75 ft - (4801 mm) |
Leech | 31 ft - (9449 mm) |
Percentage LP | * 130.49 % |
Length Perpendicular | * 14.68 ft - (4474 mm) |
Deck Angle | * 2.77 ° |
Area | * 242.27 ft² |
Sail Type | GENOA |
---|---|
Luff | 32.75 ft - (9982 mm) |
Foot | 18.167 ft - (5537 mm) |
Leech | 31 ft - (9449 mm) |
Percentage LP | * 149.96 % |
Length Perpendicular | * 16.87 ft - (5142 mm) |
Deck Angle | * 3.35 ° |
Area | * 276.24 ft² |
Sail Type | GENOA |
---|---|
Luff | * 33.8 ft - (10302 mm) |
Foot | * 18.26 ft - (5566 mm) |
Leech | * 31.7 ft - (9662 mm) |
Percentage LP | * 150.04 % |
Length Perpendicular | * 16.88 ft - (5145 mm) |
Deck Angle | * 3.99 ° |
Area | * 285.25 ft² |
Sail Type | JIBSAIL |
---|---|
Luff | * 28.46 ft - (8675 mm) |
Foot | * 15.01 ft - (4575 mm) |
Leech | * 24.54 ft - (7480 mm) |
Percentage LP | * 115.02 % |
Length Perpendicular | * 12.94 ft - (3944 mm) |
Deck Angle | * 12.02 ° |
Area | * 184.12 ft² |
Sail Type | JIBSAIL |
---|---|
Luff | 31.5 ft - (9601 mm) |
Foot | 11.167 ft - (3404 mm) |
Leech | 28.75 ft - (8763 mm) |
Percentage LP | * 90.4 % |
Length Perpendicular | * 10.17 ft - (3100 mm) |
Deck Angle | * 5.94 ° |
Area | * 160.2 ft² |
Sail Type | MAINSAIL |
---|---|
Luff | * 27.5 ft - (8382 mm) |
Foot | * 11.5 ft - (3505 mm) |
Leech-AftHdBd | * 29.19 ft - (8897 mm) |
Tack Ang | * 88 ° |
Diag (clew/head) | * 29.44 ft - (8973 mm) |
Head (inches) | * 5.25 in |
Area (no Roach) | * 163.29 ft² |
Sail Type | SPINNAKER |
---|---|
Stays | * 33.8 |
MidGirth | * 20.25 ft - (6172 mm) |
Foot | * 20.25 ft - (6172 mm) |
Perc LP | * 180 |
Area | * 582 ft² |
Sail Type | STORMJIB |
---|---|
Luff | * 19.57 ft - (5965 mm) |
Foot | * 8.5 ft - (2591 mm) |
Leech | * 15.91 ft - (4849 mm) |
Perc LP | * 60 |
Length Perp | * 6.75 |
Deck Angle | * 18.97 ° |
Area | * 66.07 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
