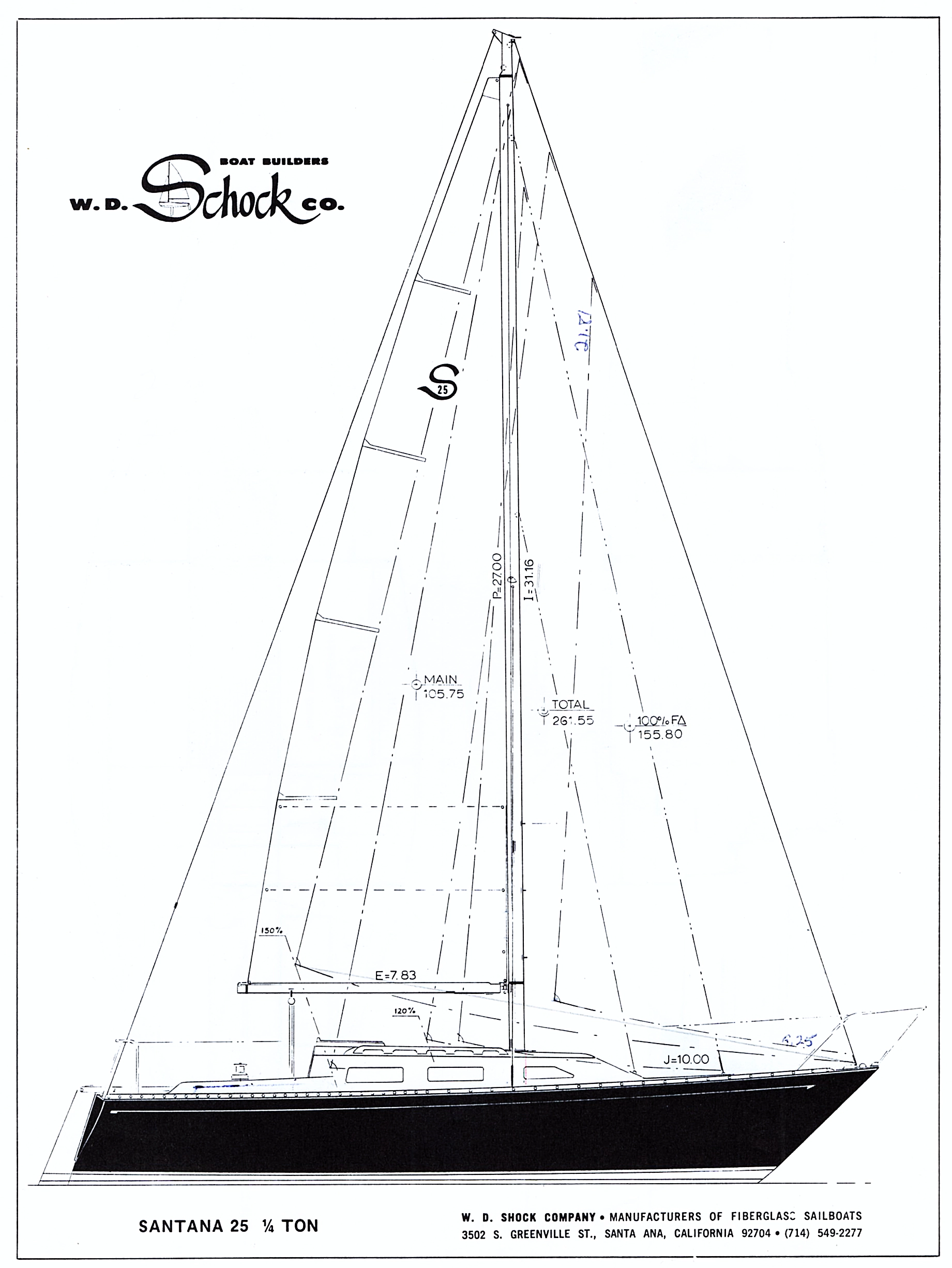

Santana 25 1/4 Ton
Description
4050 lbs. Disp. 1800 lbs. Ballast 19'6" LWL 7'10" Beam 4'1" Draft
The standard boat dimensions
| i | 31.16 ft |
|---|---|
| j | 10 ft |
| p | 27 ft |
| e | 7.83 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 31.16 ft | 10 ft | 27 ft | 7.83 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 27 ft - (8230 mm) |
| Foot | * 7.83 ft - (2387 mm) |
| Leech-AftHdBd | * 27.69 ft - (8440 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 27.85 ft - (8489 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 109.03 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 26.18 ft - (7980 mm) |
| Foot | * 13.25 ft - (4039 mm) |
| Leech | * 22.72 ft - (6925 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 11.5 ft - (3505 mm) |
| Deck Angle | * 12 ° |
| Area | * 150.51 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 31.09 ft - (9476 mm) |
| Foot | * 16.15 ft - (4923 mm) |
| Leech | * 29.24 ft - (8912 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 15 ft - (4572 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 233.15 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 31.09 ft - (9476 mm) |
| Foot | * 16.5 ft - (5029 mm) |
| Leech | * 28.6 ft - (8717 mm) |
| Perc LP | * 165 % |
| Area | * 385 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 31.09 ft - (9476 mm) |
| MidGirth | * 18 ft - (5486 mm) |
| Foot | * 18 ft - (5486 mm) |
| Perc LP | * 180 % |
| Area | * 476 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
