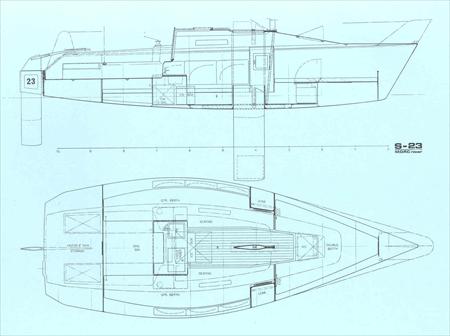

Santana 23
Description
2600 lbs. Disp. 1130 lbs. Ballast 20'7.5" LWL 8'10" Beam 5'3" Draft board down 10" Draft board up
Construction Details
| Designer | Shad Turner |
|---|---|
| Length | 23.330 ft |
| LOA | 23.330 ft |
| LWL | 20.620 ft |
| Beam | 8.830 ft |
| Displacement | 2600 lb |
| Max Draft | 5.250 ft |
| Min Draft | 0.830 ft |
The standard boat dimensions
| i | 30 ft |
|---|---|
| j | 8.75 ft |
| p | 29 ft |
| e | 10.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 30 ft | 8.75 ft | 29 ft | 10.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 29 ft - (8839 mm) |
| Foot | * 10.5 ft - (3200 mm) |
| Leech-AftHdBd | * 30.29 ft - (9232 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 30.5 ft - (9296 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 156.88 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 25 ft - (7620 mm) |
| Foot | * 11.42 ft - (3481 mm) |
| Leech | * 22.03 ft - (6715 mm) |
| Percentage LP | * 114.97 % |
| Length Perpendicular | * 10.06 ft - (3066 mm) |
| Deck Angle | * 11.97 ° |
| Area | * 125.77 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 28.75 ft - (8763 mm) |
| Foot | 10.25 ft - (3124 mm) |
| Leech | 26.92 ft - (8205 mm) |
| Percentage LP | * 109.71 % |
| Length Perpendicular | * 9.6 ft - (2926 mm) |
| Deck Angle | * 4.3 ° |
| Area | * 137.96 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 29 ft - (8839 mm) |
| Foot | 11.67 ft - (3557 mm) |
| Leech | 27.25 ft - (8306 mm) |
| Percentage LP | * 125.14 % |
| Length Perpendicular | * 10.95 ft - (3338 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 158.72 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 29.69 ft - (9050 mm) |
| Foot | * 13.99 ft - (4264 mm) |
| Leech | * 28.09 ft - (8562 mm) |
| Percentage LP | * 149.94 % |
| Length Perpendicular | * 13.12 ft - (3999 mm) |
| Deck Angle | * 4.04 ° |
| Area | * 194.79 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 29.75 ft - (9068 mm) |
| Foot | 14.25 ft - (4343 mm) |
| Leech | 28.25 ft - (8611 mm) |
| Percentage LP | * 153.03 % |
| Length Perpendicular | * 13.39 ft - (4081 mm) |
| Deck Angle | * 3.74 ° |
| Area | * 199.18 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | 29.75 ft - (9068 mm) |
| Foot | 14.67 ft - (4471 mm) |
| Leech | 26.75 ft - (8153 mm) |
| Perc LP | * 150.51 % |
| Length Perp | * 13.17 ft - (4014 mm) |
| Deck Angle | * 9.89 ° |
| Area | * 195.88 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 30.5 ft - (9296 mm) |
| Foot | 15 ft - (4572 mm) |
| Leech | 27.75 ft - (8458 mm) |
| Perc LP | * 165 % |
| Area | * 343 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 29.69 ft - (9050 mm) |
| MidGirth | * 15.75 ft - (4801 mm) |
| Foot | * 15.75 ft - (4801 mm) |
| Perc LP | * 180 % |
| Area | * 397 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 15.5 ft - (4724 mm) |
| Foot | 7.75 ft - (2362 mm) |
| Leech | 12.5 ft - (3810 mm) |
| Perc LP | * 70.86 % |
| Length Perp | * 6.2 ft - (1890 mm) |
| Deck Angle | * 20.58 ° |
| Area | * 48.07 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
