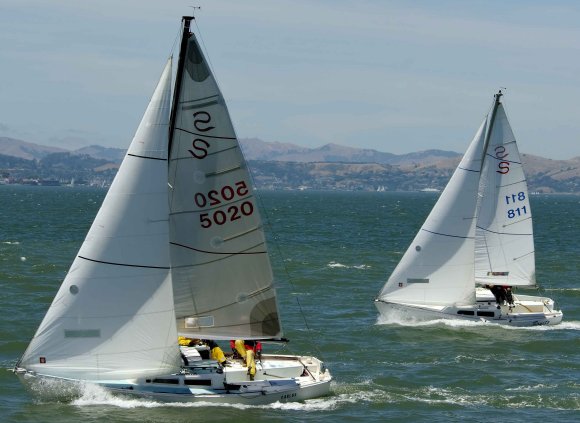

Santana 22
Description
2600 lbs. Disp. 1200 lbs. Ballast 18'9" LWL 7'10" Beam 3'6" Draft Keel Gary Mull's first design in 1965.
Construction Details
| Designer | Mull, Gary |
|---|---|
| Length | 22.000 ft |
| LOA | 22.250 ft |
| LWL | 18.750 ft |
| Beam | 7.500 ft |
| Displacement | 2600 lb |
| Max Draft | 3.500 ft |
The standard boat dimensions
| i | 25.67 ft |
|---|---|
| j | 8.58 ft |
| p | 21.75 ft |
| e | 9.83 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 25.67 ft | 8.58 ft | 21.75 ft | 9.83 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 26.5 ft - (8077 mm) |
| Foot | 14.5 ft - (4420 mm) |
| Leech | 24 ft - (7315 mm) |
| Perc LP | * 165 |
| Area | * 288 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 27 ft - (8230 mm) |
| Foot | 18.45 ft - (5624 mm) |
| Leech | 25 ft - (7620 mm) |
| Perc LP | * 165 |
| Area | * 374 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 25.33 ft - (7721 mm) |
| Foot | 14.33 ft - (4368 mm) |
| Leech | 24 ft - (7315 mm) |
| Percentage LP | * 155.01 % |
| Length Perpendicular | 13.3 ft - (4054 mm) |
| Deck Angle | * 3.43 ° |
| Area | * 168.37 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 24.58 ft - (7492 mm) |
| Foot | 8.58 ft - (2615 mm) |
| Leech | 22.25 ft - (6782 mm) |
| Percentage LP | * 90.09 % |
| Length Perpendicular | * 7.73 ft - (2356 mm) |
| Deck Angle | * 7.19 ° |
| Area | * 95.04 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 24.58 ft - (7492 mm) |
| Foot | 11.5 ft - (3505 mm) |
| Leech | 22.92 ft - (6986 mm) |
| Percentage LP | * 124.36 % |
| Length Perpendicular | * 10.67 ft - (3252 mm) |
| Deck Angle | * 3.44 ° |
| Area | * 131.11 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 21.75 ft - (6629 mm) |
| Foot | 9.83 ft - (2996 mm) |
| Leech-AftHdBd | * 23.58 ft - (7187 mm) |
| Tack Ang | * 89.25 ° |
| Diag (clew/head) | 23.75 ft - (7239 mm) |
| Head (inches) | 3.5 in |
| Area (no Roach) | * 109.69 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | 25.896 |
| MidGirth | 15.42 ft - (4700 mm) |
| Foot | 15.42 ft - (4700 mm) |
| Perc LP | * 180 |
| Area | * 339 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 13 ft - (3962 mm) |
| Foot | 6.83 ft - (2082 mm) |
| Leech | 10 ft - (3048 mm) |
| Perc LP | * 60.37 |
| Length Perp | * 5.18 |
| Deck Angle | * 22.15 ° |
| Area | * 33.69 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
